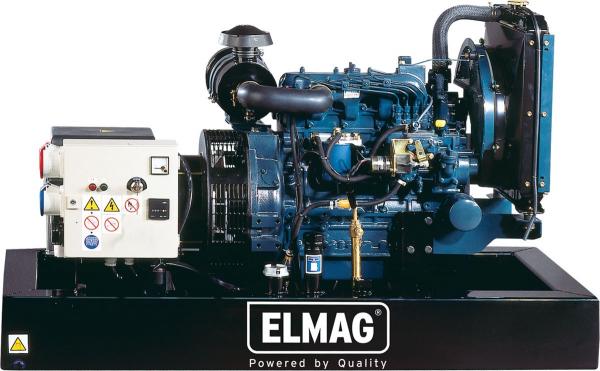

ELMAG SED 18WE - Stage 3A power generator with KUBOTA motor V2203M
Product Highlights ELMAG SED 18WE - Stage 3A generator with KUBOTA motor V2203M
SERIES SED 230 VOLT WATER-COOLED - CONTROLLED SLOW SPEED
SED generators with slow drive system are called slow runners because they have synchronous generators with four generator poles and run at 1,500 rpm motor speed. They are therefore low-wear, particularly durable and the right choice for intensive use of the generator. Ideally, the open models are installed in a generator room, energy container or utility vehicle.
Models with electronic speed control and AVR regulation offer maximum speed, frequency and voltage stability and are an ideal supply solution for process or life-support systems with high power.
Models with electronic speed control and AVR regulation offer maximum speed, frequency and voltage stability and are an ideal supply solution for process or life-support systems with high power.
-
SED 18 WE - POWER+MODELS
With speed and AVR control, excellent frequency and voltage stability, ideal for large inductive loads.
Standard equipment ELMAG SED 18WE - Stage 3A power generator with KUBOTA motor V2203M
- connections: 1x 230 V Schuko 16A and 1x 230 V CEE 63A-3p
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- AVR regulation
- Protection class IP 23
- Speed controller
- Voltmeter
- Hour meter
- Mechanical fuel gauge
- Basic frame tank
- Diesel pump 12 V
- Oil drain pump
- Oil pressure lamp
- Electric start
- Battery
- Shutdown: magneto stop, emergency stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- AVR regulation
- Protection class IP 23
- Speed controller
- Voltmeter
- Hour meter
- Mechanical fuel gauge
- Basic frame tank
- Diesel pump 12 V
- Oil drain pump
- Oil pressure lamp
Technical facts ELMAG SED 18WE - Stage 3A power generator with KUBOTA motor V2203M
- Extra powerful - original Kubota four-stroke diesel engine with water cooling
- Space-saving - large fuel tank in the base frame

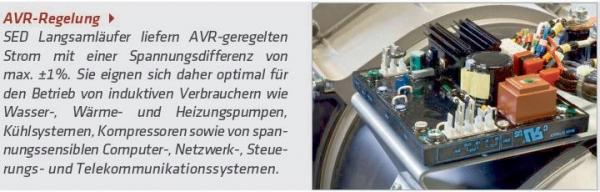

- Synchronous generator with AVR control, voltage difference max. ±1%.
- Easy handling - electric start system with maintenance-free starter battery
- Magneto-Stop System
- Thermal-magnetic circuit breaker with switch-off on overload/short circuit
- residual current circuit breaker FI 30 mA and earth spike
- Automatic switch-off in case of overtemperature and low oil pressure
- 1) Sound level does not comply with Directives 2000/14/EC, 2005/88/EC
Technical data ELMAG SED 18WE - Stage 3A generator with KUBOTA motor V2203M
voltage - frequency
230 Volt - 50 Hz
Maximum power 3~400V
- kVA
Continuous power 3~400V
- kVA
Power 3~400V cont.
- A
Maximum power 1~230V
18 kVA
Continuous power 1~230V
16 kVA
power 1~230V cont.
70 A
Fuel type
Diesel
Speed
1500 rpm
Cooling
water-cooled
Engine type
Kubota V2203M
Emission standard
3A
Engine power
20 kW
Cubic capacity
2197 cm³
Cylinders
4
Tank capacity
68 l
Consumption at 75% load
3,7 l/h
Running time per tank filling at 75% load
18,4 h
Dimensions LxWxH
160x74x94 cm
Weight (without fuel)
470 kg
Sound power according to RL 2000/14/EG, 2005/88/EG
- LWA
Sound pressure level in 7m
75¹ dB(A)
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
