ELMAG SED 163WE - Stage 3A power generator with KUBOTA motor D1105
Product Highlights ELMAG SED 163WE - Stage 3A generator with KUBOTA engine D1105
SERIES SED 230 VOLT WATER-COOLED - STATIONARY POWER PLANTS
The open SED power generators are installed in generator rooms, energy containers or utility vehicles. They serve as reliable construction site power generators or emergency power generators and supply events, tent festivals and open-air events. Their water-cooled 3000 rpm diesel engine combines long service life and high efficiency. Models with AVR control are recommended for supplying computer, telecommunications and energy storage systems.
-
SED 163WE - STAGE 3A ENGINES
Reliable power generators for intensive work and long power outages. High performance for single-phase consumers and systems.
Standard equipment ELMAG SED 163WE - Stage 3A generator with KUBOTA motor D1105
- connections: 1x 230 V Schuko 16A and 1x 230 V CEE 63A-3p
- Electric start
- Battery
- Shutdown: Magneto-Stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- Condenser control
- Protection class IP 21
- Voltmeter
- Hour meter
- Mechanical fuel gauge
- Basic frame tank
- Diesel pump 12 V
- Oil drain pump
- Electric start
- Battery
- Shutdown: Magneto-Stop, low oil pressure, overtemperature, overload, short circuit, FI 30 mA and earth spike
- Synchronous generator
- Condenser control
- Protection class IP 21
- Voltmeter
- Hour meter
- Mechanical fuel gauge
- Basic frame tank
- Diesel pump 12 V
- Oil drain pump
Technical facts ELMAG SED 163WE - Stage 3A generator with KUBOTA engine D1105

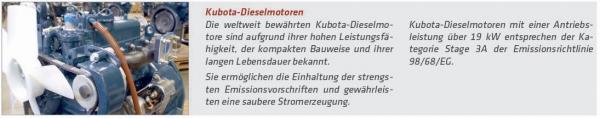

- Extra powerful - original Kubota four-stroke diesel engine
- Durable - drive with water cooling, large dimensioned cooling system
- Space-saving - large fuel tank in the base frame
- Synchronous generator with capacitor control, voltage difference max. ±1%.
- Easy handling - electric start system with maintenance-free starter battery
- Magneto-Stop System
- Thermal-magnetic circuit breaker with switch-off on overload/short circuit
- residual current circuit breaker FI 30 mA and earth spike
- Automatic switch-off in case of overtemperature and low oil pressure
- 1) Sound level does not comply with Directives 2000/14/EC, 2005/88/EC
Technical data ELMAG SED 163WE - Stage 3A generator with KUBOTA motor D1105
voltage - frequency
230 Volt - 50 Hz
Maximum power 3~400V
- kVA
Continuous power 3~400V
- kVA
Power 3~400V cont.
- A
Maximum power 1~230V
14,5 kVA
Continuous power 1~230V
13,2 kVA
Power 1~230V cont.
57 A
Fuel type
Diesel
Speed
3000 rpm
Cooling
water-cooled
Engine type
Kubota D1105
Emission standard
3A
Engine power
19 kW
Cubic capacity
1123 cm³
Cylinders
3
Tank capacity
55 l
Consumption at 75% load
3,9 l/h
Running time per tank filling at 75% load
14,1 h
Dimensions LxWxH
130x64x86 cm
Weight (without fuel)
330 kg
Sound pressure level in 7m
81¹ dB(A)
Highest quality of ELMAG machines
Benefit from a 2-year guarantee from ELMAG
Accessories for ELMAG machines on request
