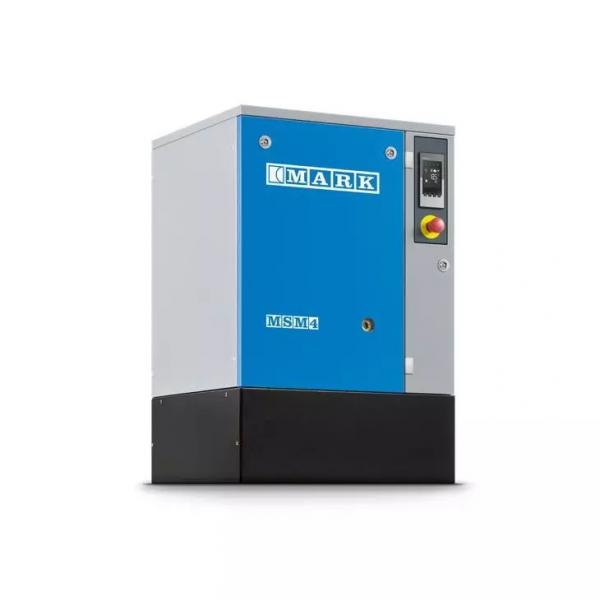

Product highlights ELMAG MARK screw compressor MSM 5.5 - 10bar with ES4000 Connect
More compressed air, lower energy costs
Get 15% more compressed air with 12% less energy consumption compared to the previous model. The Mark MSM is the ultimate workshop compressor: powerful, user-friendly and always reliable. Thanks to the screw technology, you get more compressed air and benefit from lower energy costs at the same time.
What's more, you can use the compressor all day long without any cool-down times. Of course, you can customise the MSM to your specifications and preferences. We offer a power range from 2.2 to 7.5 kW, both base-mounted and container-mounted models, and a range of options for customising your MSM.
MSM base frame models
Particularly suitable for installation near workstations or when expanding existing systems with an existing compressed air tank.
Base frame model
The screw compressor essentially consists of: Intake filter, compressor, electric motor, oil filter and oil cooler, control and monitoring unit, external oil level indicator, a supporting base section and a sound insulation bonnet.
Intelligent condensate drain
Advantages:
- Only water, NO compressed air is drained = energy saving
- Low noise, no noise pollution = protection of the environment
Intelligent monitoring, control and safety

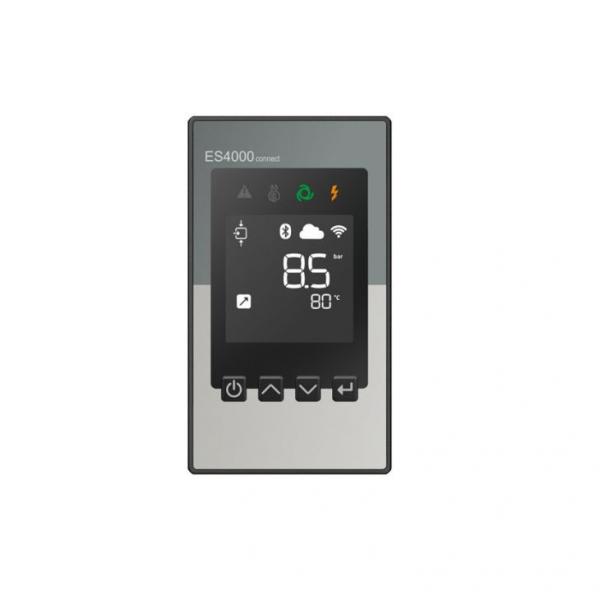

ES4000 Connect offers advanced monitoring and easy configuration for daily tasks and control of operations.
- Icon-based display with pressure and temperature indicators
- Operating hours, utilisation in hours
- Maintenance messages
- Fault alarms
- Quick pressure adjustment directly on the control unit
- With load-idle control
- Automatic restart after power failure
Technical data ELMAG MARK screw compressor MSM 5.5 - 10bar with ES4000 Connect
Effective delivery quantity |
780 l/min |
Max. Operating pressure |
10 bar |
Sound pressure level ISO 2151 2004 |
66 dB(A) |
Rated motor power |
5,5 / 7,5 kW / hp |
Electrical connection Voltage / frequency |
400/50 V/Hz |
Air outlet |
3/4 inch |
Length |
620 mm |
Width |
630 mm |
Height |
950 mm |
Weight |
130 kg |
