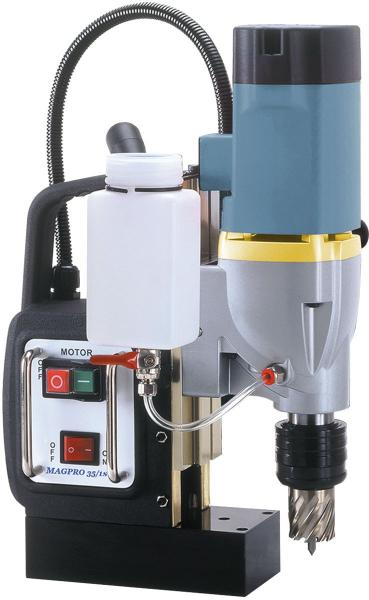

ELMAG MAGPRO 35 Semi Automatic magnetic drilling machine
Produkt-Highlights ELMAG MAGPRO 35 Semi Automatic magnetic drilling machine
Product description
Highest productivity and safety in core drilling. The compact and flexible design of the MAGPRO series is perfectly suited for small and medium-sized requirements in assembly, service and outdoor applications.
Highest productivity and safety in core drilling. The compact and flexible design of the MAGPRO series is perfectly suited for small and medium-sized requirements in assembly, service and outdoor applications.
Technical facts ELMAG MAGPRO 35 Semi Automatic magnetic drilling machine
- Standard equipment:
- Safety chain
- Coolant tank
- Tools
- Transport case
- Automatic drilling operation for core drilling from 14 - 30 mm
- Manual operation from 12 - 35 mm
- Automatic feed is activated by the control cross
Technical data ELMAG MAGPRO 35 Semi Automatic magnetic drilling machine
- Core drilling capacity in steel: 12-35mm
- core drilling depth: manual operation/automatic: 50x35 / 45x30mm
- Solid drilling capacity in steel Ø x l: 13x110mm
- Recording: Weldon 19
- Speed range: 620 rpm
- Speed steps: 1
- stroke: 70mm
- magnetic holding force: 15000N
- Motor power: 1100W
- Dimensions: 290x310x395mm
- Weight: 17kg
Highest quality of ELMAG machines
Benefit from a 2 year ELMAG warranty
Accessories for ELMAG machines on request
