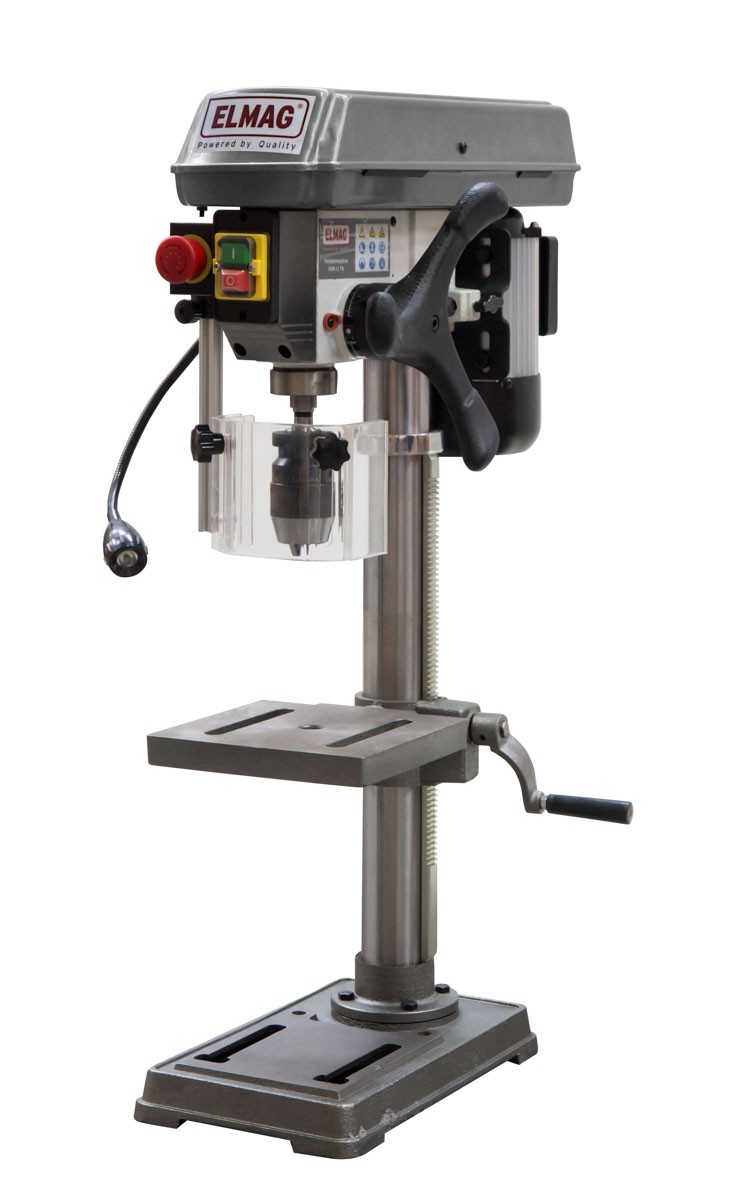

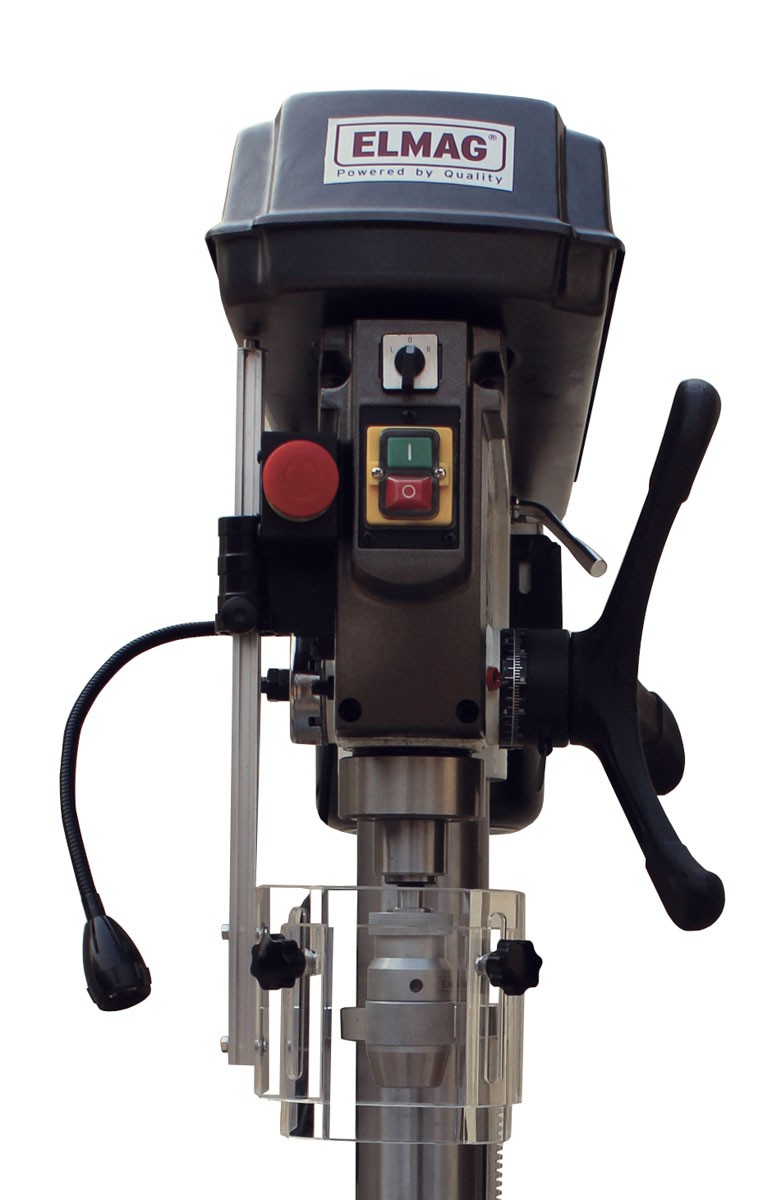

ELMAG KBM 16 TN V-belt table drilling machine
Product Highlights ELMAG KBM 16 TN V-belt table drilling machine
-
COMPACT ELMAG PROFESSIONAL TABLE DRILLING MACHINES
The compact table drilling machines KBM 13 TN, 16 TN and 25 TN have a proven drive system with a strong quality motor and belt drive. A high concentricity is achieved by using precision bearings. With a drilling capacity in steel of 13, 16 or 25 mm, these models are well suited for ambitious model builders and hobby craftsmen - and for all those who appreciate a professionally equipped workshop. Tip: Ideal price in the set offer. -
HOW THE PROFESSIONALS DRILL
1. drill selection: For metals: Use metal drills made of high performance high-speed steel (HSS). Tungsten carbide or stainless steel: metal drills with titanium coating or made of a cobalt alloy.
2. center-punching: Mark the drilling location by scribing with a scribing needle. Apply a hardened centre punch pin and mark the drilling point with a short hammer blow - this prevents the drill from slipping. For HSS drills with cross-ground surface, the center-punching can be omitted. For large drill diameters, pre-drill with a smaller drill bit.
3rd speed: To protect the drill bit, drill hard metal at low speed and with low pressure. For softer metals use higher speed. Reduce pressure before breakthrough.
4. cooling: Cool the drill bit. For long drillings, lift the drill several times and supply coolant, if necessary, take breaks in drilling.

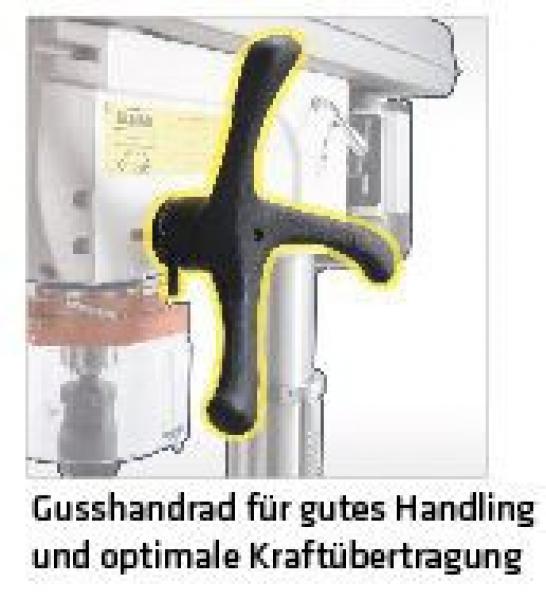

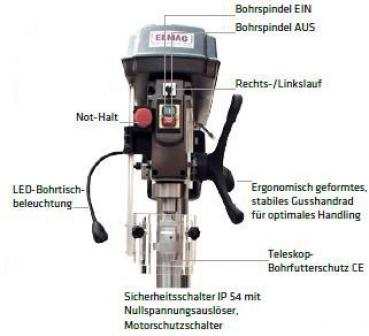

Technical facts ELMAG KBM 16 TN V-belt table drilling machine
Standard equipment:

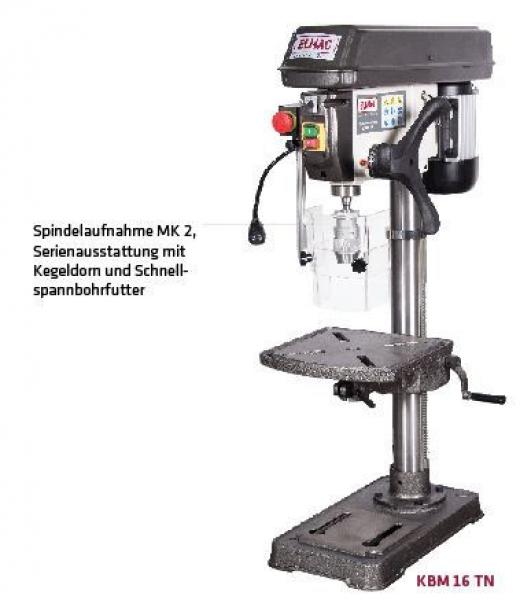

- Keyless drill chuck B 16. 1 - 16mm
- Taper mandrel MK 2 / B 16
- Drift wedge
- Tool kit
- Operating instructions / CE
- Keyless drill chuck B 16. 1 - 16mm
- Taper mandrel MK 2 / B 16
- Drift wedge
- Tool kit
- Operating instructions / CE
Technical data ELMAG KBM 16 TN V-belt table drilling machine
Drilling capacity in steel
16 mm
Spindle holder (turning spindle)
MK 2
Speed range
100 - 2,000 rpm
Speed stages
12
Sleeve stroke
80 mm
Column diameter
73 mm
T-slots, width
16 mm
Drilling table stroke
360 mm
Spindle throat
195 mm
Drilling table tiltable
± 45°
Drilling table rotatable
± 180°
quill distance table min./max.
110 - 470 mm
Drilling table surface
300 x 310 mm
Engine power
550 W
Network connection
400 / 50 - 60 V/Hz
Cubature
300 x 310 x 680 mm
Base plate area (lxw)
285 x 495 mm
Height (total)
1,070 mm
Weight
56 kg
Benefit from a 2-year warranty from ELMAG
