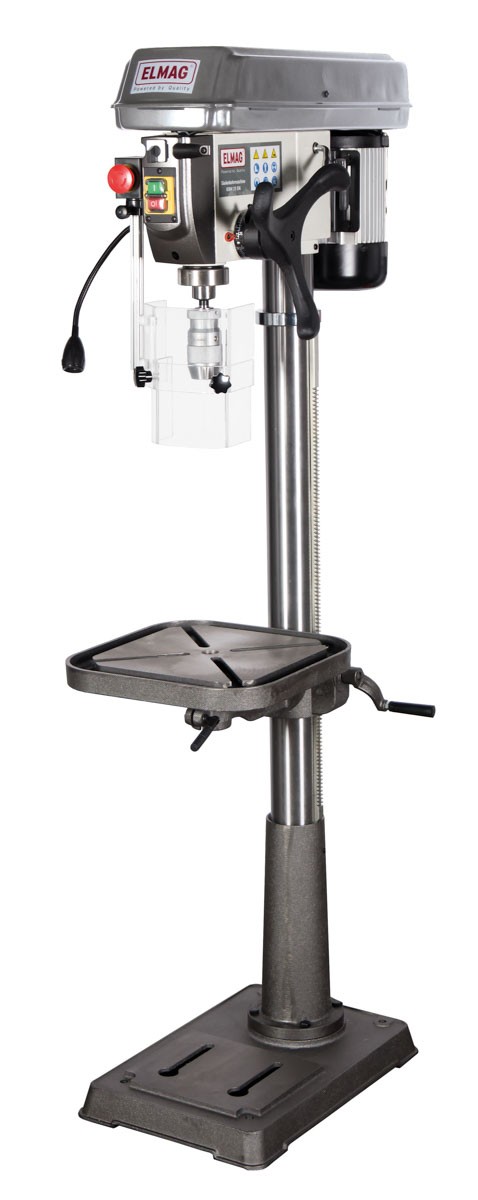

ELMAG KBM 16 SN V-belt column drilling machine
Product Highlights ELMAG KBM 16 SN V-belt column drill
-
SUPER SLIM ELMAG PROFESSIONAL COLUMN DRILL 550 W
With a maximum quill distance to the drilling table of 680 mm, the KBM 16 SN enables the machining of high workpieces and finished welded components. Clamping grooves in the base plate extend the scope for high shaped parts. The machine is therefore well suited for repairs in agriculture and for frame construction in metal construction companies. It stands out for its solid construction and good standard equipment. -
HOW TO DRILL PROFESSIONAL
1. drill selection: For metals: Use metal drills made of high performance high-speed steel (HSS). Tungsten carbide or stainless steel: metal drills with titanium coating or made of a cobalt alloy.
2. center-punching: Mark the drilling location by scribing with a scribing needle. Apply a hardened centre punch pin and mark the drilling point with a short hammer blow - this prevents the drill from slipping. For HSS drills with cross-ground surface, the center-punching can be omitted. For large drill diameters, pre-drill with a smaller drill bit.
3. speed: To protect the drill bit, drill hard metal at low speed and with low pressure. For softer metals use higher speed. Reduce pressure before breakthrough.
4. cooling: Cool the drill bit. For long drillings, lift the drill several times and supply coolant, if necessary, take breaks in drilling.
Technical facts ELMAG KBM 16 SN V-belt column drill
Standard equipment:
- Keyless drill chuck B 16, 1 - 16 mm
- Taper mandrel MK 2 / B 16
- Drift wedge
- Tool kit
- Operating instructions / CE
- Keyless drill chuck B 16, 1 - 16 mm
- Taper mandrel MK 2 / B 16
- Drift wedge
- Tool kit
- Operating instructions / CE
Technical data ELMAG KBM 16 SN V-belt column drill
Drilling capacity in steel
16 mm
Spindle holder (turning spindle)
MK 2
Speed range
100 - 2,000 rpm
Speed stages
12
Sleeve stroke
80 mm
Column diameter
73 mm
T-slots, width
16 mm
Drilling table stroke
630 mm
Spindle throat
195 mm
Drilling table tiltable
± 45°
Drilling table rotatable
± 180°
quill distance table min./max.
75 - 680 mm
Drilling table surface
300 x 310 mm
Engine power
550 W
Network connection
400 / 50 - 60 V/Hz
Cubature
300 x 310 x 680 mm
Base plate area (lxw)
285 x 495 mm
Height (total)
1,610 mm
Weight
64 kg
Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG
Accessories for ELMAG machines on request
