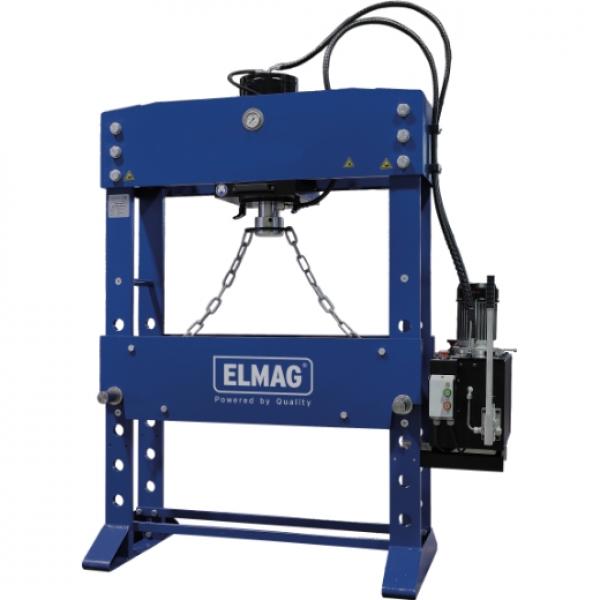

Standard equipment ELMAG Hydraulic Workshop Press PREMIUM WPMEH 30/2

- Overload safety valve
- Compression pressure gauge
- On/off control valve
- Cylinder piston, chrome-plated
- Press table with locking pin
- Operating instructions/CE

Technical data ELMAG Hydraulic Workshop Press PREMIUM WPMEH 30/2

press power max.	30 t
electorhydraulic drive	Yes
two drive speeds	Yes
manuel handpump	Yes
press table chain (height adjustment)	Yes
oil flow step 1/2	2.82 / 11.84 l/min
piston speed step 1/2	9.8 / 3.57 mm/s
Return travel speed	18.11 mm/s
motor power	1500 W
voltage	400/50 V/Hz
machine height	2120 mm
machine length without pump	1000 mm
machine width	695 mm
inlet length	750 mm
beam width	260 mm
inlet height max.	950 mm
machine length with pump	1315 mm
machinewidth with pump	805 mm
Piston stroke	380 mm
Weight	385 kg

Highest quality machines from ELMAG
Benefit from a 2-year ELMAG guarantee

Accessories for ELMAG machines on request
