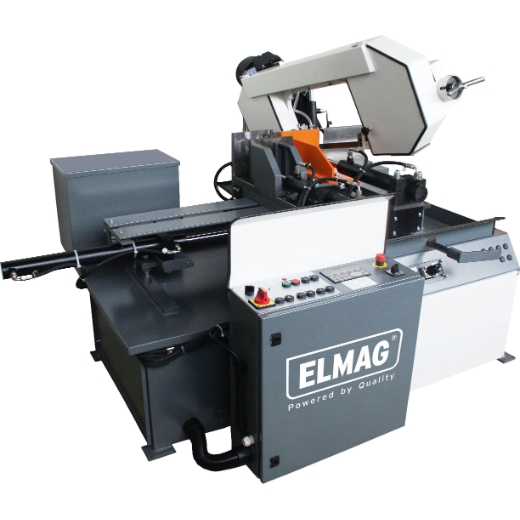

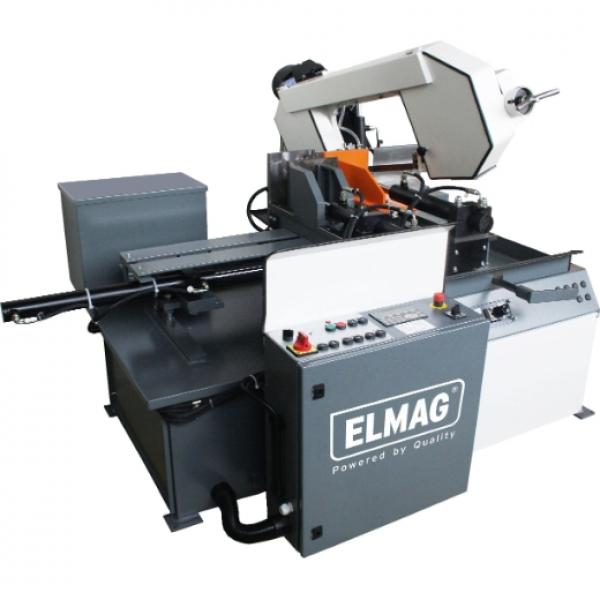

ELMAG HS 280 GZA BAUER automatic mitre band saw

Automatic - a worthwhile investment
The additional costs of an automatic saw are amortized after only 1.5 years if it is operated for one hour per day. During the cutting process, the employee is free for other tasks, e.g. reworking or preparing the next job.

Automatic for series
Loading bar stock, selecting the cutting size and starting the automatic cycle - the fully automatic mitre band saw HS 280 GZA was developed especially for series production. Its hydraulically driven gripper feed and SPS6 section control enable an extremely simple and economical production method.

The automatic cycle includes:
- Cycle start from control panel
- Close the tongstick
- Gripper feed to size
- Close vice
- Saw blade drive on
- Coolant pump on
- Lowering the saw bow / cutting
- Gripper feed back
- Lifting the saw bow
- Saw blade drive off
- Coolant pump off
- Loosen workpiece
- Cycle repetition until end of bar or piece count or interruption

Six section lengths can be stored, the minimum and maximum section length is 5 mm and 6,000 mm respectively. The maximum stroke of the feed cylinder is 500 mm. Cut-off lengths of more than 500 mm are achieved by a fully automatic stroke division.

Manual for single cut. The HS 280 GZA model is also suitable for single cuts and can be used like a manually operated metal band saw.

Extremely accurate
Like all BAUER models, the HS 280 GZA has an excellent product quality. The extremely robust and torsion-resistant machine offers a repeatability of ±0.1 mm and a cutting accuracy of ±0.15 mm on a material height of 100 mm.

A continuously adjustable cutting pressure control, two cutting speeds for hard and soft materials and a high-performance band saw blade made of bimetallic cobalt. enable perfect cutting results. An infinitely variable speed control is available as an optional accessory.

HS 280 GZA - Top equipment
Fully automatic mitre band saw for cutting sizes up to 340x200 mm- Very high throughput, two speed levels, single sided mitre up to 60°. With modern control electronics and hydraulic system to control the clamp feed, quick-action vice and saw frame functions. Translated with www.DeepL.com/Translator (free version)
