Main page » Workshop » Compressed air technology » ELMAG compressor » ELMAG Compressor PROFI-LINE 'SILENT' PL-S D 1100/10/27

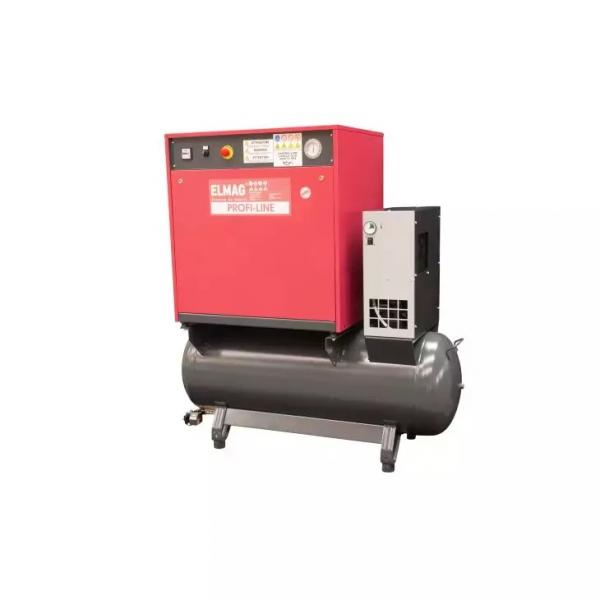

ELMAG Compressor PROFI-LINE 'SILENT' PL-S D 1100/10/27
NEW
ELMAG Compressor PROFI-LINE 'SILENT' PL-S D 1100/10/27 compact unit, incl. refrigeration dryer
Product highlights ELMAG Compressor PROFI-LINE 'SILENT' PL-S D 1100/10/27
PROFI-LINE SILENT series
The highly effective sound insulation of the ELMAG® Profi-Line SILENT air compressors reduces the sound pressure to 68 to a maximum of 69 dB(A), depending on the device. This corresponds to the volume of a conversation. Profi-Line SILENT models are therefore well suited for noise-sensitive production areas, including office environments, and impress with the high level of development of the proven EUROCOOL units.
The highly effective sound insulation of the ELMAG® Profi-Line SILENT air compressors reduces the sound pressure to 68 to a maximum of 69 dB(A), depending on the device. This corresponds to the volume of a conversation. Profi-Line SILENT models are therefore well suited for noise-sensitive production areas, including office environments, and impress with the high level of development of the proven EUROCOOL units.
Technical facts ELMAG Compressor PROFI-LINE 'SILENT' PL-S D 1100/10/27
- No installation effort
- Space-saving
- Air outlet directly at the DL tank with ball valve
- Centralised condensate drainage
- Vibration-free due to vibration buffer
- V-belt drive: generous transmission ratio, optimised efficiency
- Low unit speed: 1,000 to max. 1,100 rpm
- Low-noise operation: 68 - 69 dB(A)
- Multiple vibration damping for low vibrations
- Possible addition of filters
- All Profi-Line SILENT compressors are equipped with a central control panel - an optional external boiler is required for all models.
- Combined with a permanently installed refrigerant dryer for efficient compressed air dehumidification
Technical data ELMAG Compressor PROFI-LINE 'SILENT' PL-S D 1100/10/27
| Effective delivery quantity | 806 l/min |
| Suction capacity | 1074 l/min |
| Max. Operating pressure | 10 bar |
| Oil lubricated | yes |
| Container volume | 270 l |
| Rated motor power | 7,5 / 10 kW / hp |
| Electrical connection Voltage / frequency | 400/50 V/Hz |
| Sound pressure level (4 m) | 68 dB(A) |
| Compressor speed | 1000 rpm |
| Air outlet | 1/2 inch |
| Length | 1520 mm |
| Width | 700 mm |
| Height | 1530 mm |
| Weight | 311 kg |
