Product highlights ELMAG compressor 'oil-free' 105/10/3 W ESPRIT 3T 60/4

Clean, oil-free air
Very clean, oil-free compressed air may be desired or required for various professional compressed air applications - for example, when applying special colour pigments, in medical applications, in the production of baked goods or other foodstuffs.

The direct-drive, 100% oil-free ESPRIT, ECU and SUPERFOX compressors have been specially developed for this purpose and have a particularly robust and high-quality design. Thanks to the low unit speeds, the appliances are also very quiet.

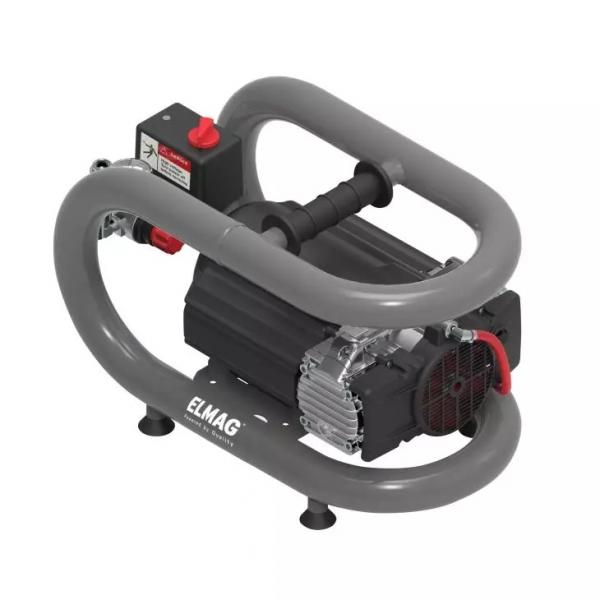

Oil-free compressor ESPRIT 3T 60/4
Compact unit (ONLY 13 kg) with a robust protective frame, as a pressure compensation tank with a capacity of 3 litres.

Handy compressor, ideal for small assembly work in the hobby, trade and construction site sectors.

Low speed:
2-cylinder unit with only 1400 rpm, making it extremely quiet.

Technical facts ELMAG compressor 'oil-free' 105/10/3 W ESPRIT 3T 60/4

'Plug-and-play' quick-connect coupling
Pressure switch for automatic on/off operation
Pressure gauge for tank pressure
Pressure gauge for system pressure
Pressure reducing valve for infinitely variable pressure regulation
Safety valve
Non-return valve
All devices are easy to transport and mobile

Technical data ELMAG compressor 'oil-free' 105/10/3 W ESPRIT 3T 60/4

Effective delivery quantity	45 l/min
Delivery quantity according to VDMA 4362, measured at 80 % of the maximum pressure	yes
Suction capacity	105 l/min
Max. Operating pressure	10 bar
Container volume	3 l
Execution	portable
Rated motor power	0,5 / 0,7 kW / hp
Electrical connection Voltage / frequency	230/50 V/Hz
Sound pressure level (4 m)	52 dB(A)
Compressor speed	1400 rpm
Length	450 mm
Width	240 mm
Height	280 mm
Weight	13 kg
