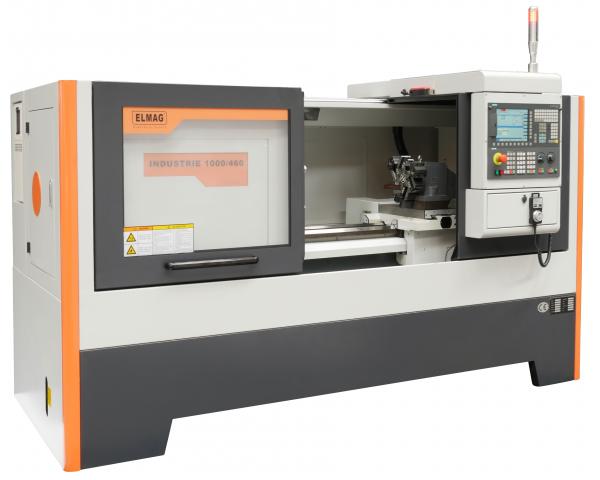

ELMAG CNC lathe INDUSTRIE 1000/460

Product highlights ELMAG CNC lathe INDUSTRIE 1000/460

ROBUST AND MAINTENANCE-FREE

A magnesium die-cast control panel front, the panel-based CNC design with few interfaces and a high protection class make the SINUMERIK 828D control a reliable partner even in harsh environments. The fanless and hard disk-less design as well as the NV-RAM memory technology without buffer battery make the SINUMERIK 828D a completely maintenance-free CNC control.

SIEMENS SINUMERIK 828D

- Panel-based compact CNC
- Up to 8 axes/spindle
- 8.4" colour display
- CNC user memory up to 5 MB
- 4 interpolating axes
- 256 tool storage locations

Standard equipment ELMAG CNC lathe INDUSTRIE 1000/460

- CNC control SIEMENS SINUMERIK 828D
- SIEMENS servo motor on X- and Z-axis

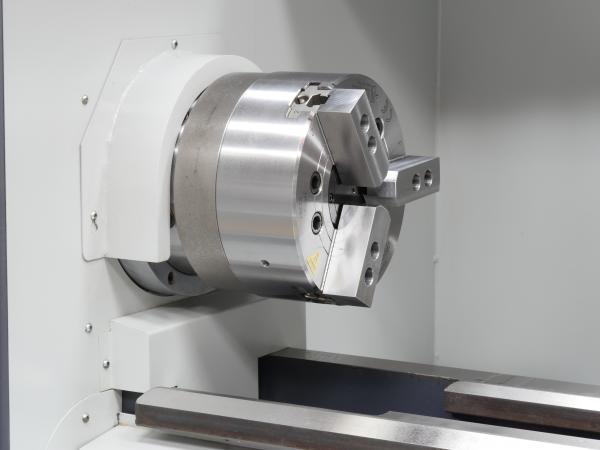

- Hydraulic three-jaw lathe chuck 260 mm
- Ball screws

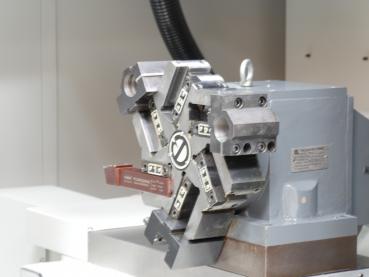

- 6-fold tool changer
- Cut-off working area

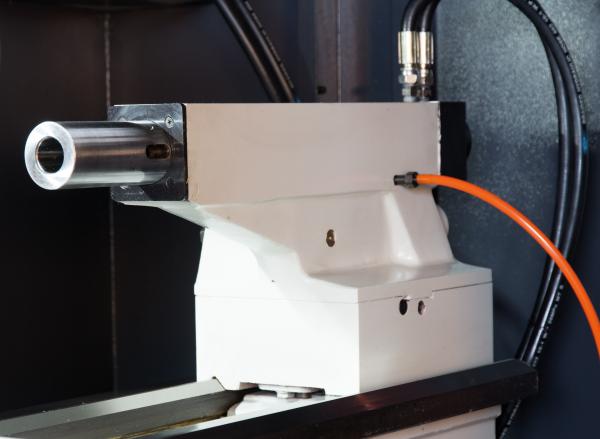

- Hydraulic tailstock
- Automatic central lubrication
- Integrated oil lubrication
- Integrated coolant system
- LED work light
- Operating tool

Technical data ELMAG CNC lathe INDUSTRIE 1000/460

• Centre width: 1,000 mm
• Centre height: 230 mm
• Turning diameter over bed: 460 mm
• Turning diameter over slide: 240 mm
• Turning diameter without bridge: 335 mm
• Cross slide travel: 280 mm
• Turning tool cross-section, max.: 25x25 mm
• Lathe chuck mounting: No. D8
• Spindle receptacle (turning spindle): MK 7 mm
• Spindle bore: 65 mm
• Speed range 1, infinitely variable: 100 - 2000 rpm
• Quill mount: MK 5
• quill diameter: 75 mm
• quill travel: 130 mm
• Motor power: 5500 W
• Mains connection: 400/50 V/Hz
• Length (total): 2,300 mm
• Width (total): 1,180 mm
• Height (total): 1,500 mm
• Weight: 2,350 kg
• Longitudinal feed (Z-axis): 10000 mm/min
• Cross feed (X-axis): 8000 mm/min
• Positioning accuracy: 0.01 mm
• Tool places: 6
• Torque main spindle: 50 Nm
• Boring bar holder: 40 mm
• Turning length: 850 mm
• Control type: SIEMENS SINUMERIK 828D
