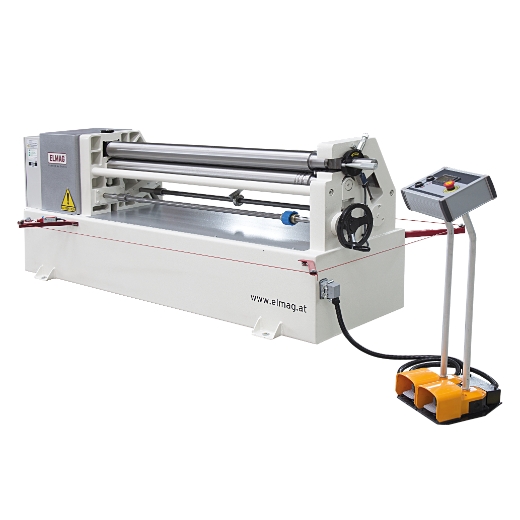

ELMAG ASM-S 3100x4.0mm motorised round bending machine

Technical facts ELMAG ASM-S 3100x4.0mm motorized round bending machine:

•     Bending capacity
•     Working lengths for standard sheet metal formats, max. 1,600 to 3,100 mm
•     Sheet thickness models - 3.0 to 6.0 mm (pre-bending max.) - 4.0 to 7.0 mm (bending max.)
•     Smallest possible rolling diameter depending on model 210 to 300 mm

Standard equipment

•     Massive machine body made of steel (S 355)

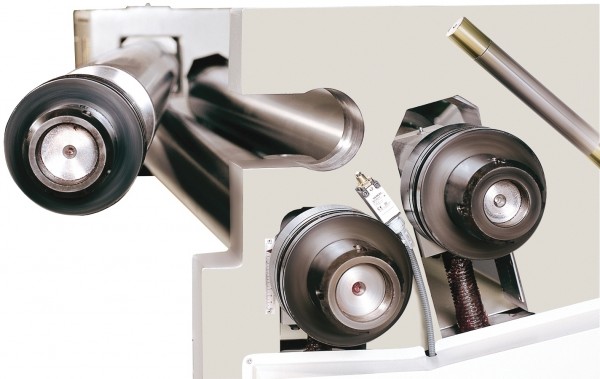

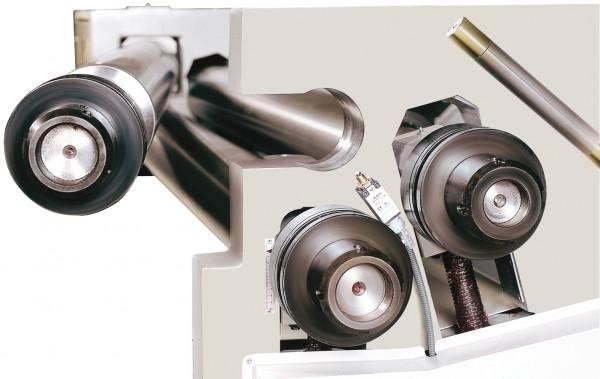

•     Induction hardened steel rolls
•     Rear roller motor adjustable
•     Control panel
•     Operating Instructions - CE

Special accessories

•     Digital display for rear roller
•     Extended rollers
•     Profile rolls
•     Infinitely variable speed

Technical data ELMAG ASM-S 3100x4,0mm motorized round bending machine:

•     working length: 3100mm
•     Top roller diameter: 170mm
•     Bending diameter min.: 255mm
•     Motor power: 4000W
•     Power supply: 400 / 50-60V/Hz
•     Control column supply/return: Yes

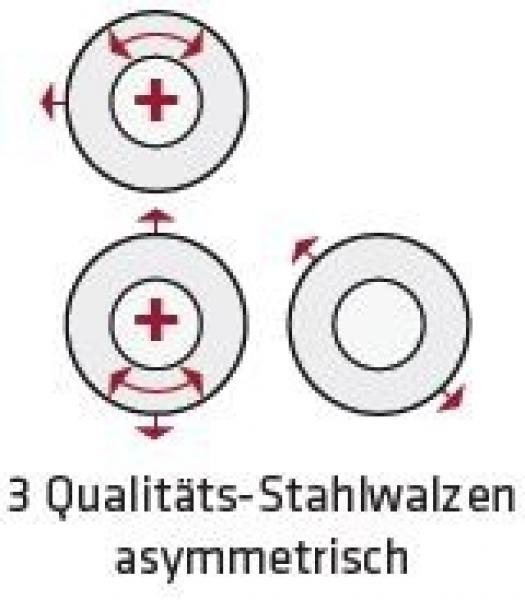

•     Quality steel rolls: 3No.
•     Drive rollers (+): 2count
•     Cone bending device: Yes
•     Wire insertion grooves bottom/back roller: -
•     length: 4650mm
•     width: 820mm
•     height: 1130mm
•     Weight: 3200kg
