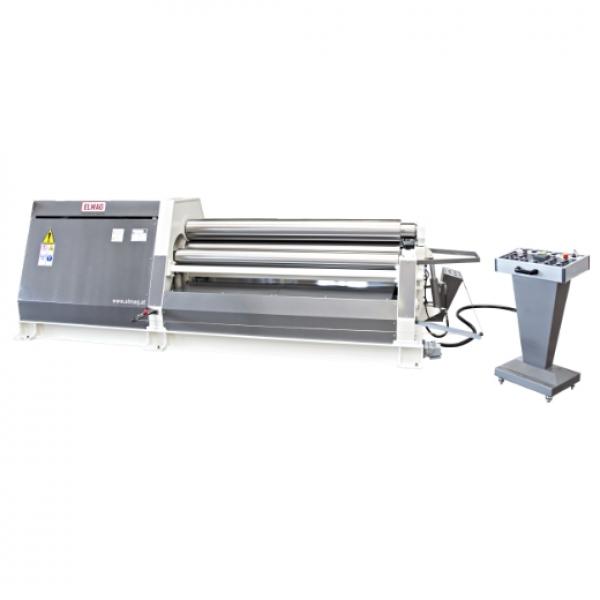

ELMAG AHS 4100x25 mm Hydraulic 4-roller round bending machine

Product No.:
83187
on request on request (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
36000 kg per piece
Price on request
Ask about product
Description

Technical facts ELMAG AHS 4100x25 mm Hydraulic 4-roll round bending machine:​

  • Bending performance data
  • Working lengths for standard sheet formats, max. 2,100 to 4,100 mm
  • Sheet thickness models - 1.0 to 20.0 mm (pre-bending max.) - 1.0 to 25.0 mm (bending max.)
  • Smallest possible rolling diameter 630 mm
Standard equipment
  • Robust machine body and roll frame made of steel
  • Cone bending device for tapered workpieces
  • Induction-hardened steel rollers with ball bearings
  • Hydraulically driven rollers
  • Two speeds

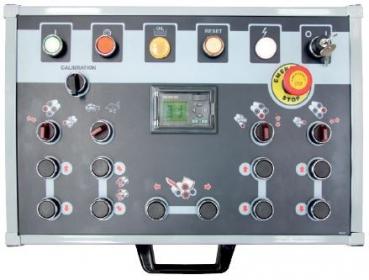

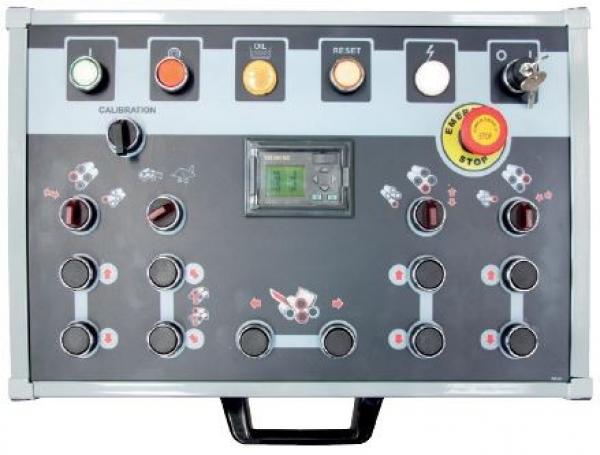

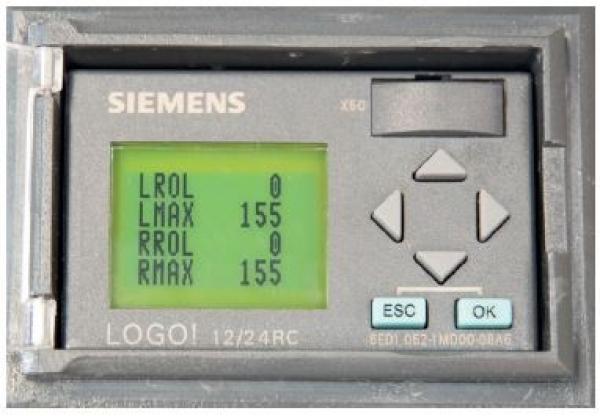

  • Control panel with digital display
  • Operating instructions - CE
Optional accessories
  • Stepless, adjustable speed
  • Side and centre supports for large sheet diameters
  • Material feed table
  • Oil cooling system
  • NC control system
  • CNC control system

Technical data ELMAG AHS 4100x25 mm Hydraulic 4-roll round bending machine:​

  • Working length: 4100mm
  • Top roller diameter: 460mm
  • Side roll diameter: 360mm
  • Bottom roll diameter: 420mm
  • Motor power: 22000W
  • Mains connection: 400 / 50-60V/Hz
  • Control column forward/backward: Yes
  • Quality steel rollers: 4No.

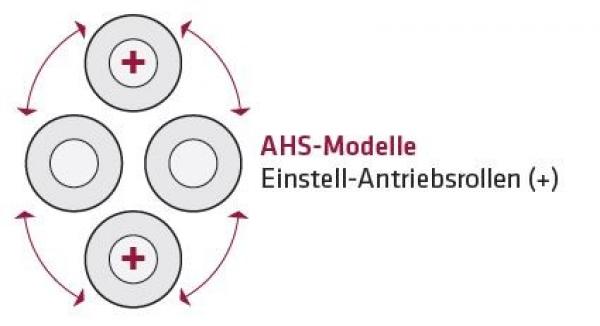

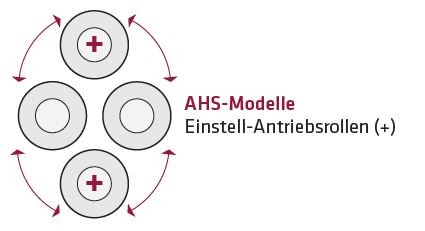

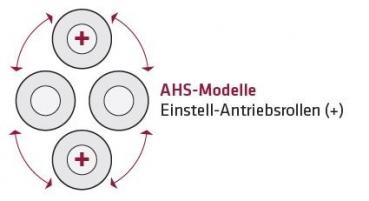

  • Drive rollers (+): 2No.
  • Cone bending device: Yes
  • Length: 7470mm
  • Width: 2300mm
  • Height: 2585mm
  • Weight: 36000kg

Highest quality machines from ELMAG
Benefit from a 2 year ELMAG warranty

Accessories for ELMAG machines on request
