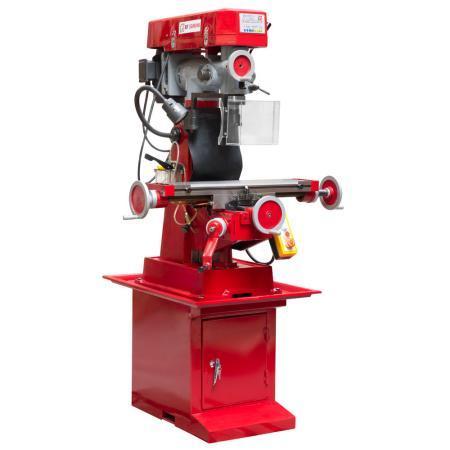

BF50MINI400V Holzmann milling machine

Product Highlights BF50MINI400V Holzmann milling machine

• compact precision design with exact spindle rotation
• Speed can be adjusted by turning the V-belt
• exact, manual feed due to fine adjustable hand wheels
• smooth-running worktable thanks to adjustable guide rails
• Standard lamp and central lubrication
• optional automatic feed and machine stand available

Technical data BF50MINI400V Holzmann milling machine​

• Motor power S1 in W: 1,1 kW
• voltage: 400V / 3 / 50Hz

• Throat in mm: 155
• Table size in mm: 600x152

• Milling spindle holder: MK/MT3
• milling spindle speed in min-1: 200-2500
• max. distance spindle-table in mm: 343
• X-axis travel in mm: 370
• Y-axis travel in mm: 150
• Z-axis travel in mm: 195
• spindle stroke in mm: 80
• Head tilt: 90°
• Gross weight in kg: 400
