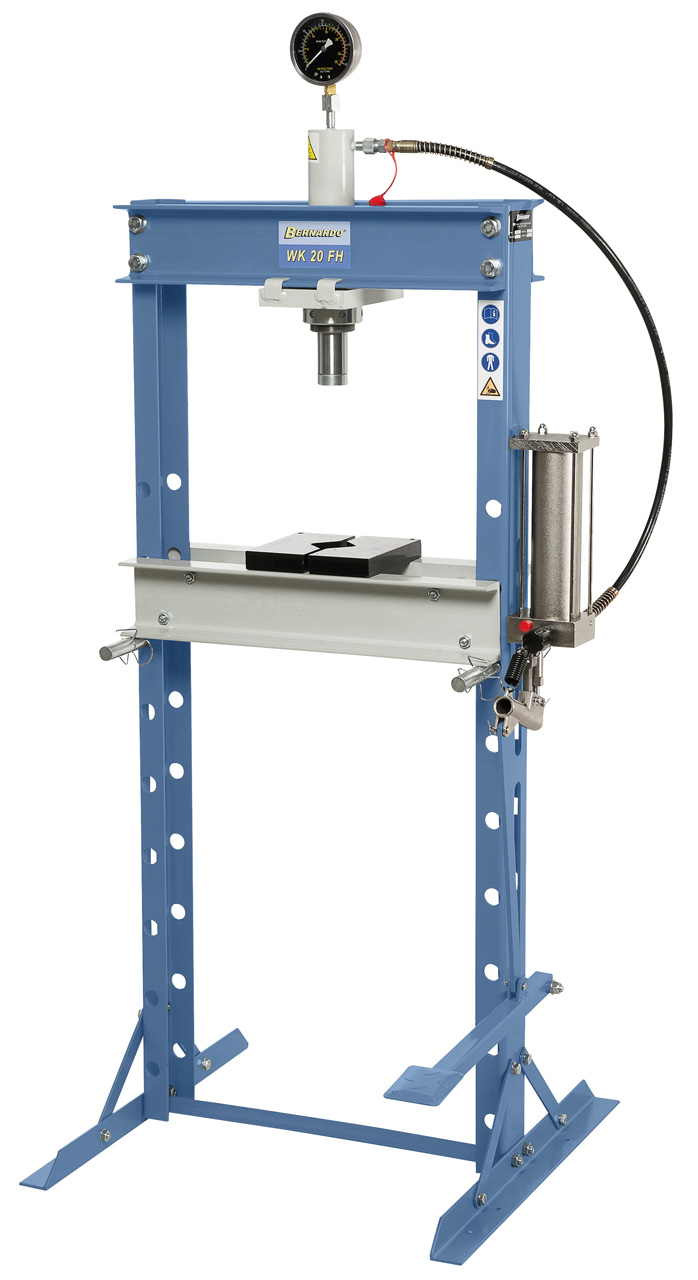

Bernardo WK 20 FH Workshop press
Features Bernardo WK 20 FH Workshop press

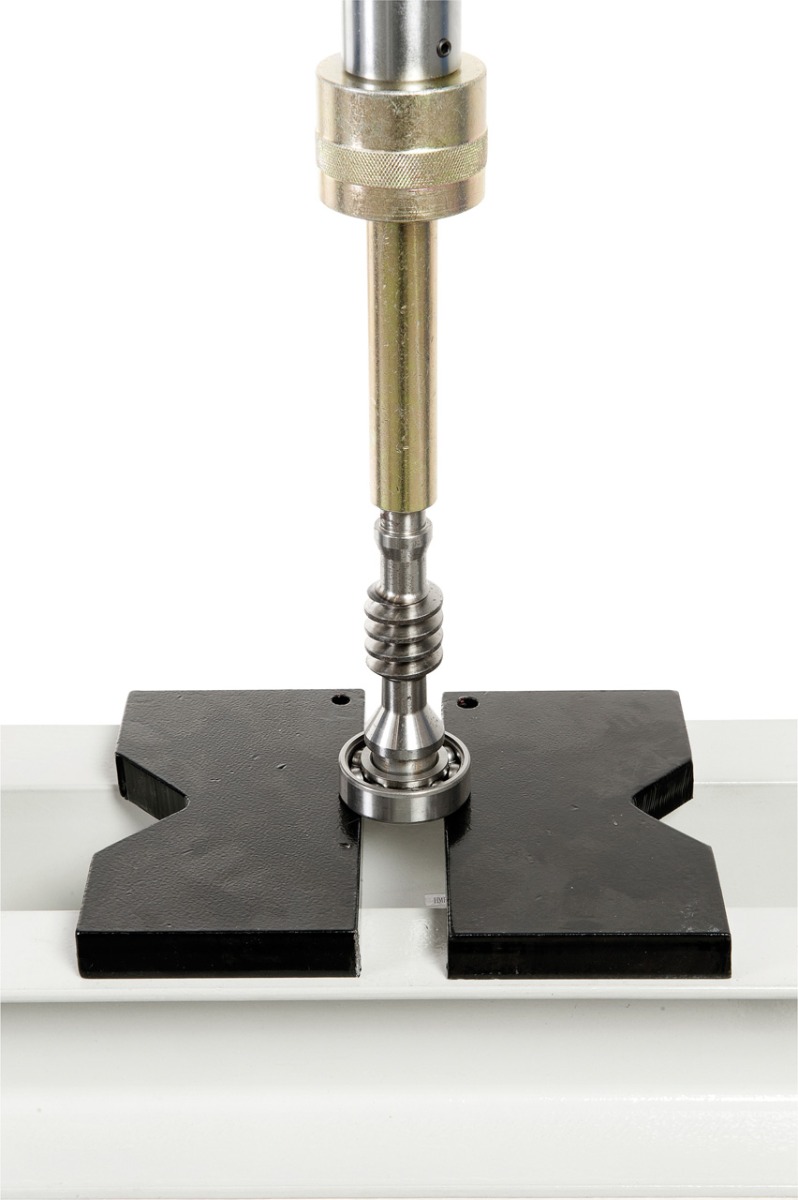

- For aligning, pressing, bending, mounting of gears, discs etc.
- Including single-stage hydraulic hand pump and automatic piston retraction
- Ideal presses for craftsmen and repair shops

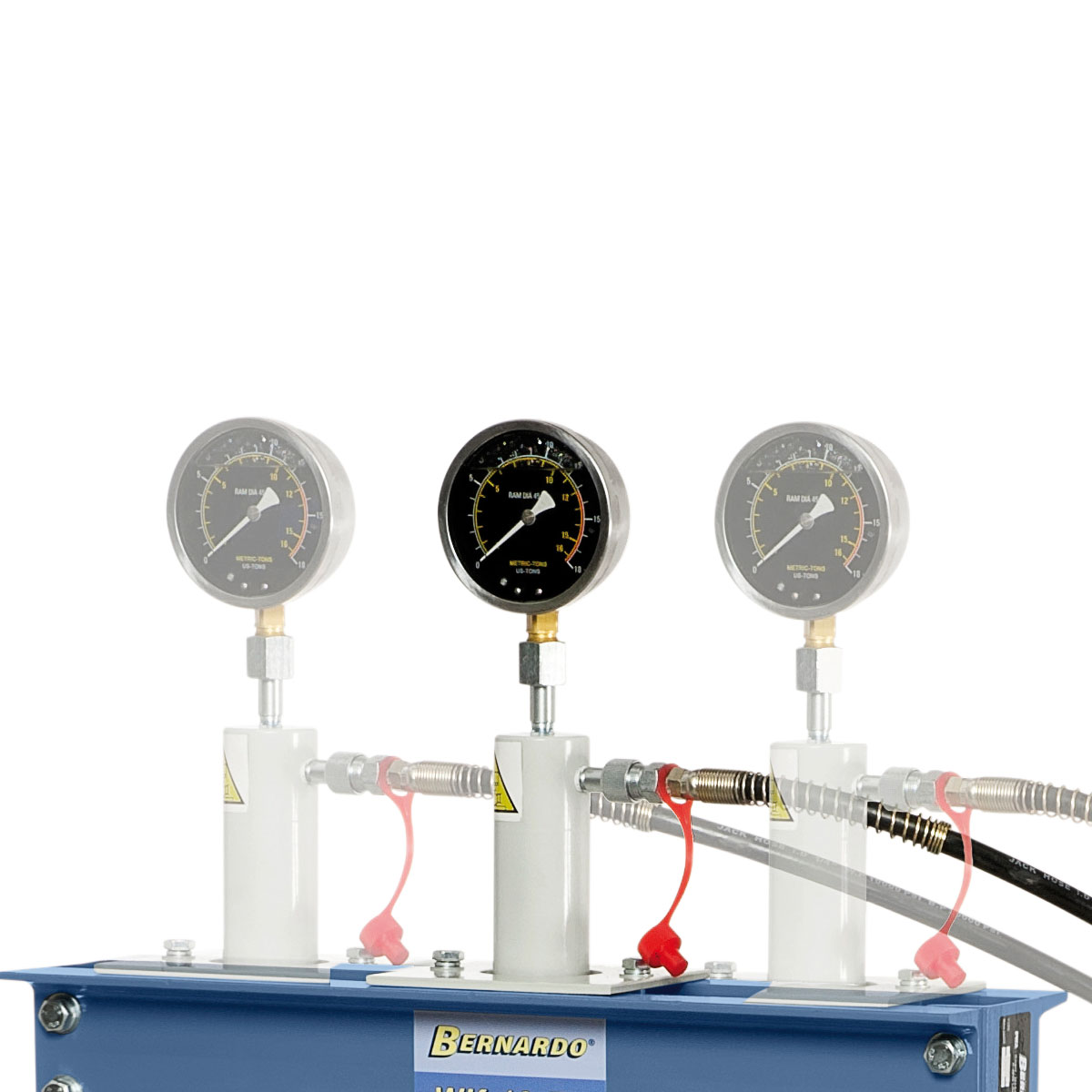

- Equipped with a pressure gauge as standard
- Height-adjustable press bed with locking pin
- Optimal price-performance ratio due to rational design
- Versatile in assembly and workshop use
- Standard with foot pedal and hydraulic hand pump for piston feed
Available special accessories:
- Pressure mandrel set 10 pcs. (Art. Nr. 06-6147)

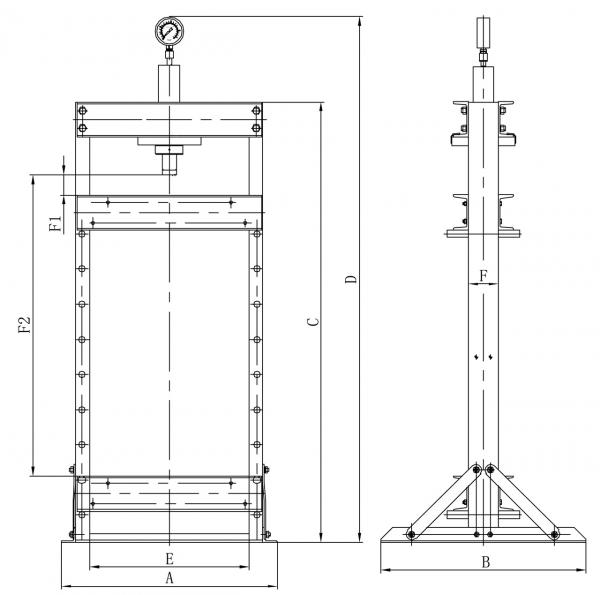

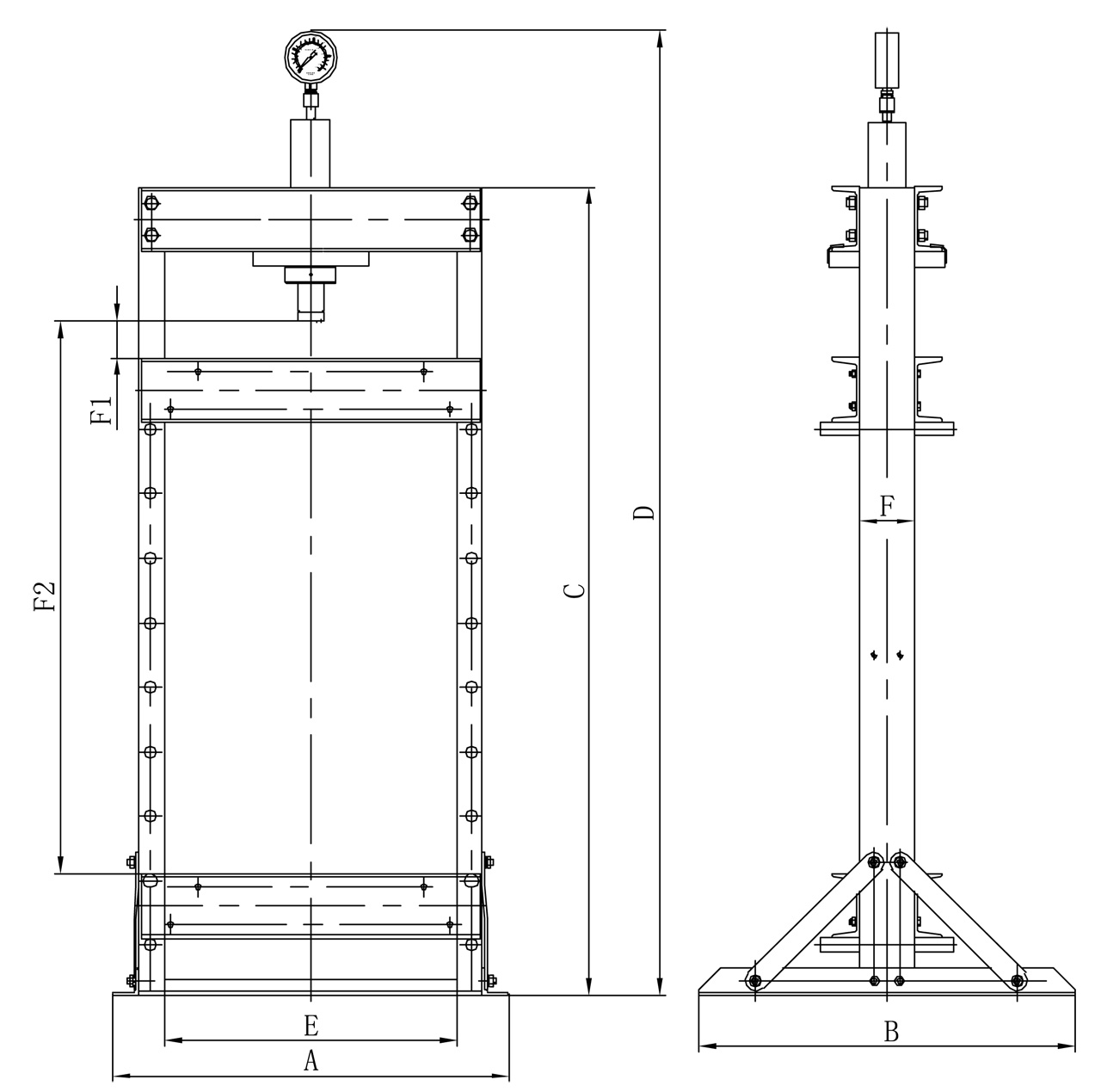

Technical data Bernardo WK 20 FH Workshop press
| Compressive force | 20 tons |
| Piston stroke | 180 mm |
| Table width | 210 mm |
| Passage (E) | 540 mm |
| Distance cylinder - table (F1) | 35 mm |
| Distance cylinder - table (F2) | 880 mm |
| Cylinder slidable | 400 mm |
| Width (A) | 745 mm |
| Depth (B) | 700 mm |
| Height 1 (C) | 1510 mm |
| Height 2 (D) | 1800 mm |
| Weight approx. | 91 kg |
