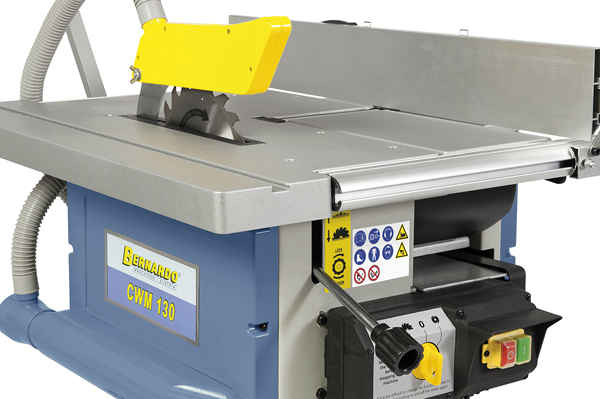

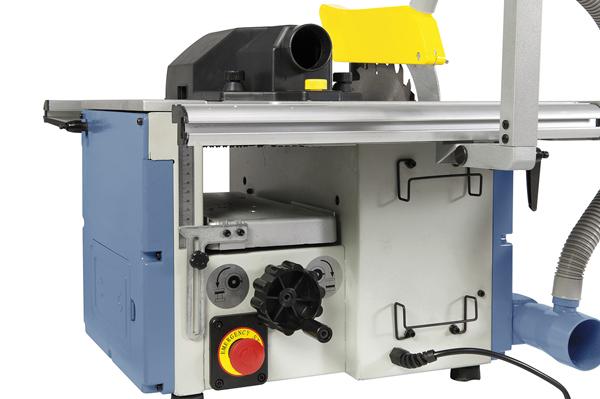

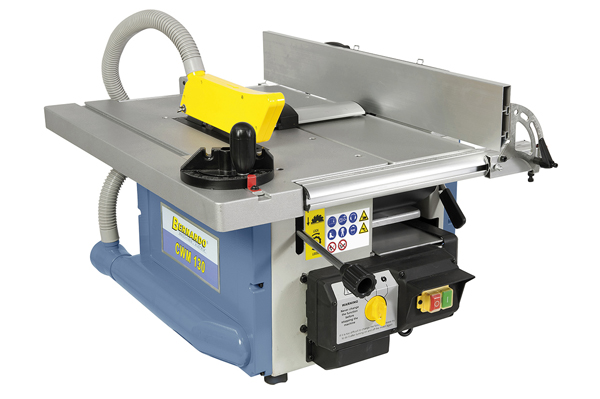

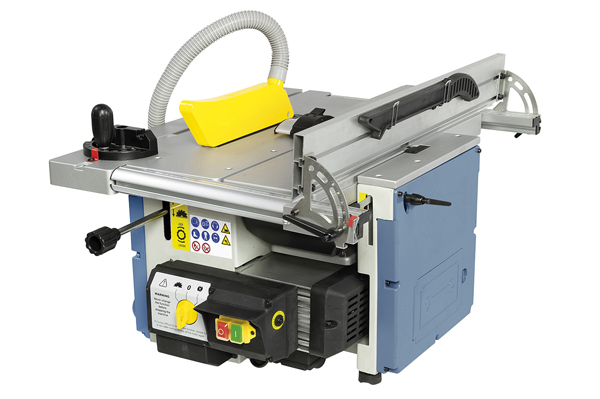

Bernardo Universal Combi CWM 130
The handy CWM 130 universal combination machine offers numerous application possibilities in a very small space and at an extremely favourable price. Thanks to its small and compact design, this model is easy to transport and can be used anywhere.
Features Bernardo Universal-Combi CWM 130
- Versatile application possibilities in the smallest space
- All switching elements are clearly arranged in an electrical panel
- Optimal price-performance ratio for hobbyists and do-it-yourselfers
- Ideally suited for precise planing of boards, battens, beams, ...
- Precision-bearing 2-blade shaft with HSS planer blade
- Planing fence made of anodised aluminium
Scope of delivery Bernardo Universal-Combi CWM 130
- Planer blade 157 x 17 x 3 mm
- Dressing fence
- Mitre fence
- HM saw blade 200 x 2.6 x 30 mm / Z 20
- Saw blade guard with suction connection
- Connecting hose with Y-piece
- Push stick
- 2x push handle
- Operating tool
Technical data Bernardo Universal-Combi CWM 130
| Surface planer |
|
| Dressing width | 154 mm |
| Table length | 620 mm |
| Table height | 325 mm |
| Planing shaft speed | 6000 rpm |
| Planer blade | 2 pcs. |
| Plane shaft diameter | 45 mm |
| Dressing fence | 735 x 100 mm |
| Swivelling dressing stop | 90° to 45° |
| Max. Chip removal | 1,5 mm |
| Thickness planer |
|
| Table length | 315 mm |
| Planing width | 154 mm |
| Thickness passage, min/max. | 7 - 92 mm |
| Max. Chip removal | 1,0 mm |
| Feed rate | 7 m/min |
| Suction connection Ø | 50 mm |
| Circular saw |
|
| Table dimension | 700 x 310 mm |
| Table height | 325 mm |
| Max. Saw blade diameter | 200 x 30 mm |
| Max. Cutting height 90° | 40 mm |
| Cutting width at rip fence | 285 mm |
| Main saw blade speed | 4200 rpm |
| Suction connection Ø | 60 mm |
|
|
|
| Engine power | 1.0 kW (1.36 hp) |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 800 x 600 x 550 mm |
| Weight approx. | 39 kg |
