Bernardo Swivel spindle milling machine with tenon slot table TS 1300 TCE
Properties Bernardo Swivel spindle milling machine with tenon slot table TS 1300 TCE
- Large speed range (5 settings) from 1500 to 9000 rpm
- Moulding fence features fi nely adjustable aluminium stop bars on both sides
- Handwheel with analogue anlge indicator for tilting of spindle
- Electronic speed display – easy and comfortable read out on LED
- Complete with interchangeable spindle to achieve high productivity
- Logically arranged switch elements on machine front
- Tenoning carriage includes telescopic fence, tenoning hood (300 mm) and emergency-stop button

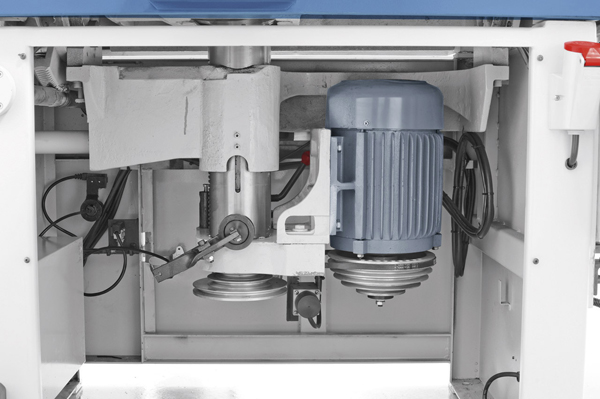

- Powerful motor (5.5 kW) with star-delta starter designed for continuous operation
- Large grey cast-iron moulder unit, tiltable from -10º to +45º
- Includes table extension, infeed roller and extractable workpiece support for large workpieces
Standard accessories Bernardo Swivel spindle milling machine with tenon slot table TS 1300 TCE:
- Moulding fence FA-01
- Protective and pressing device
- Tenoning hood
- Tenoning carriage and tiltable telescope fence
- Interchangeable spindle 30 mm
- Left and right turning
- LED speed indication
- Analogue angular indication
- Electric spindle brake
- Automatic star-delta starter
- Connection for power feed
- Table extension right
- Extractable support
Technical specifications Bernardo Swivel spindle milling machine with tenon slot table TS 1300 TCE:
| Table size | 1910 x 430 / 850 mm |
| Table extension right | 600 x 430 mm |
| Working height | 870 mm |
| Spindle diameter | 30 mm |
| Tilting spindle | -10° to +45° |
| Height adjustment of spindle | 160 mm |
| Working length of spindle | 110 mm |
| Max. tool diameter |
|
| - at profiling | 260 mm |
| - at tenoning | 335 mm |
| Max. tool diameter concealed | 210 mm |
| Table opening | 220 mm |
| Spindle speed | 1500 / 3500 / 5500 / 7500 / 9000 rpm |
| Tenoning carriage |
|
| Table size | 900 x 360 mm |
| Max. travel | 830 mm |
| Dust extraction outlet | 125 / 100 mm |
| Motor power | 5,5 kW (7,5 HP) – 400 V |
| Machine dimension (W x D x H) | 2610 x 1230 x 1500 mm |
| Weight approx. | 664 kg |
