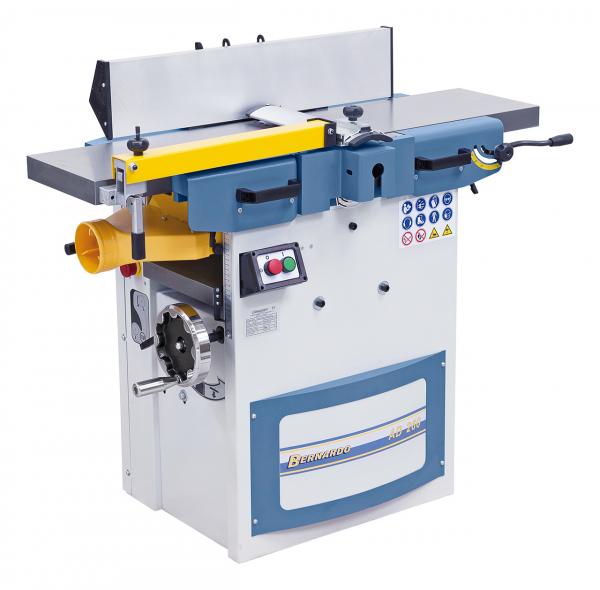

Features Bernardo Surface Planer and Thicknesser AD 260 - 230V

The machine with the optimal price-performance ratio for the professional do-it-yourselfer. Requirements such as stability, high power reserves and safety are a matter of course with this model. The short changeover time from planing to thicknessing, thanks to the dual folding system of the planing tables, is another plus of this machine.

The dressing tables fold up towards the rear of the machine, allowing space-saving installation

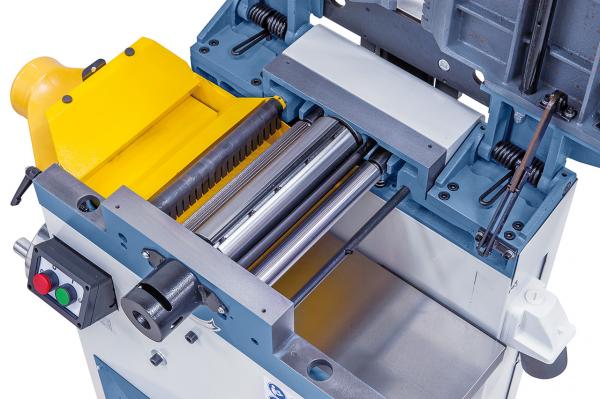

Optimum working results due to the smooth running of the precision-mounted 3-blade shaft
Integrated folding chip ejector bonnet - connection diameter 100 mm

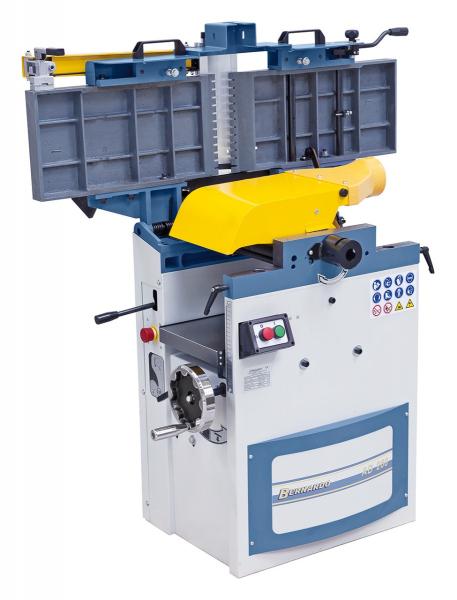

Dual folding of the dressing tables for maximum operating comfort
Thicknessing table feed can be switched off when planing
Hard anodised aluminium dressing fence, swivels from 90° to 45
Thicknessing table on central column guide and support for accurate planing
Best planing results due to torsion-free truing tables made of grey cast iron
Numerous safety devices: On-off switch with undervoltage release, planing shaft protection according to CE, limit switch against unintentional switch-on,...

Scope of delivery Bernardo planer and thicknesser AD 260 - 230V

Planer knives in HSS quality
Planer blade setting gauge
Sliding stick

Technical data Bernardo Surface Planer and Thicknesser AD 260 - 230V

Surface planer
Dressing width	250 mm
Table length	1090 mm
Table height	835 mm
Planing shaft speed	4000 rpm
Planer blade	3 pcs.
Plane shaft diameter	75 mm
Dressing fence	715 x 130 mm
Swivelling dressing stop	90° to 45
Max. Chip removal	3 mm
Thickness planer
Table length	600 mm
Planing width	250 mm
Thickness passage, min./max.	5 - 185 mm
Max. Chip removal	2,5 mm
Feed rate	4.8 m/min
Suction connection Ø	100 mm
Motor output power S1 100%	2.0 kW (2.7 hp)
Motor input power S6 40%	2.8 kW (3.8 hp)
Voltage	230 V
Machine dimension (L x W x H)	1150 x 800 x 1000 mm
Weight approx.	173 kg
