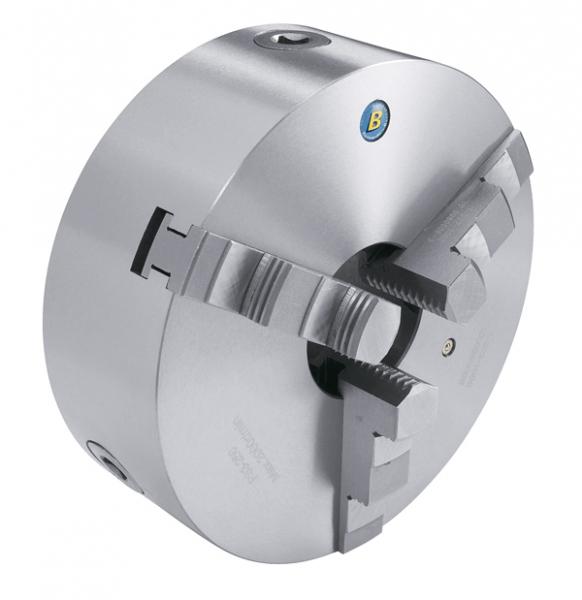

Bernardo standard 3-jaw chuck PS3-125
Product features Bernardo standard 3-jaw chuck PS3-125
Design:
- Standard three-jaw lathe chuck with high-quality cast iron body.
- With centring fixture according to DIN 6350
- Including 1 set each of turning and drilling jaws
Range of application:
- Suitable for lathes and grinding machines
- For use on machines with increased concentricity
Standard accessories:
- 1 set of turning jaws IJ-PS3
- 1 set of drilling jaws OJ-PS3

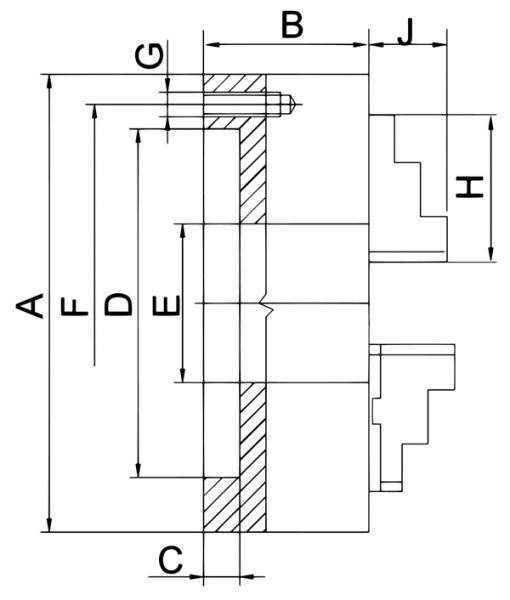

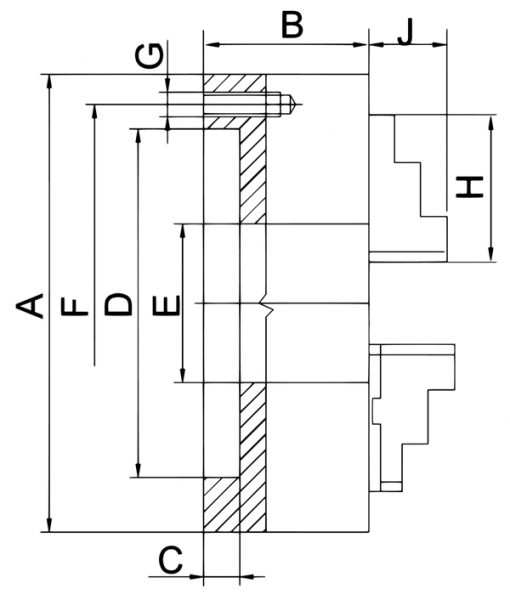

Technical data Bernardo standard 3-jaw chuck PS3-125
| A - Chuck size | 125 |
| B | 56 mm |
| C | 4 mm |
| D | 95 mm |
| E | 32 mm |
| F | 108 mm |
| G | M8 |
| H | 51 mm |
| J | 20 mm |
| Max. Speed | 3200 rpm |
| Weight approx. | 5 kg |
