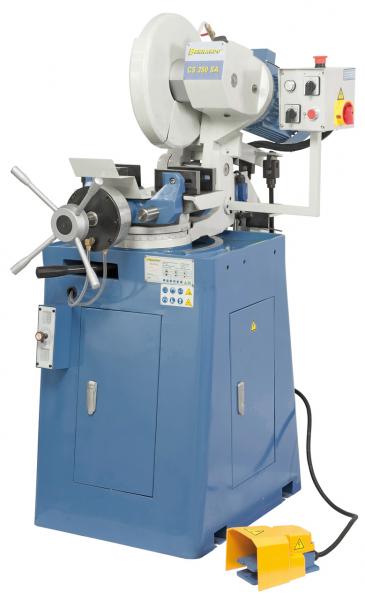

Bernardo semi-automatic metal circular saw CS 350 SA

Product features Bernardo semi-automatic metal circular saw CS 350 SA

The CS 350 SA semi-automatic metal circular saw was specially designed for economical sawing of individual parts and small series. This machine is therefore especially suitable for companies that need a reliable machine for everyday sawing work.

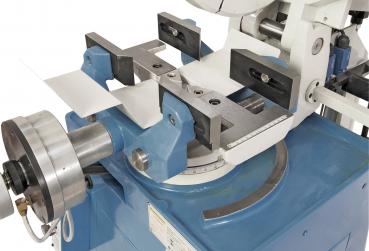

• Precise, 4-fold guided, self-centring double clamping vice

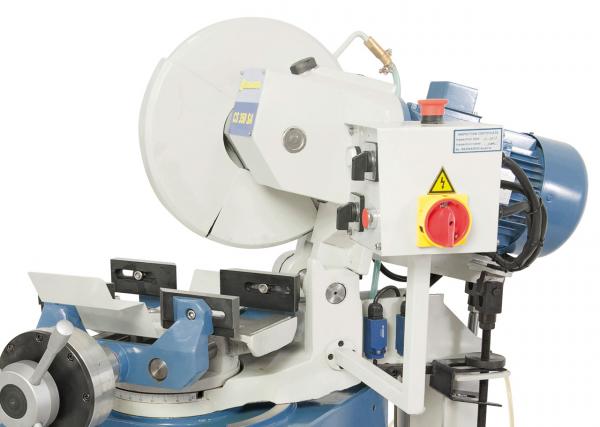

• Optimum safety during cutting due to the automatically opening protective hood
• Heavy-duty machine base, prepared for mounting various roller conveyors
• Gearbox with slip clutch - prevents saw blade breakage

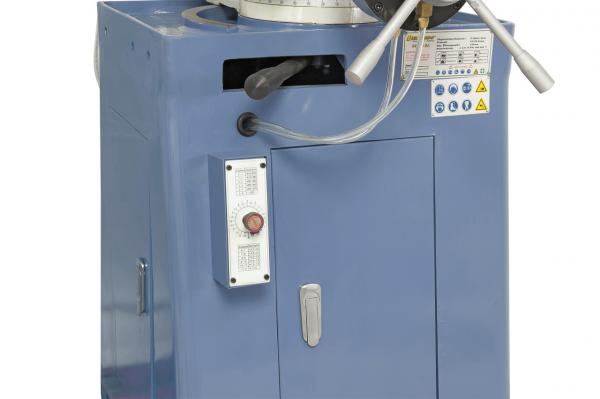

• Powerful coolant system integrated in the machine base frame

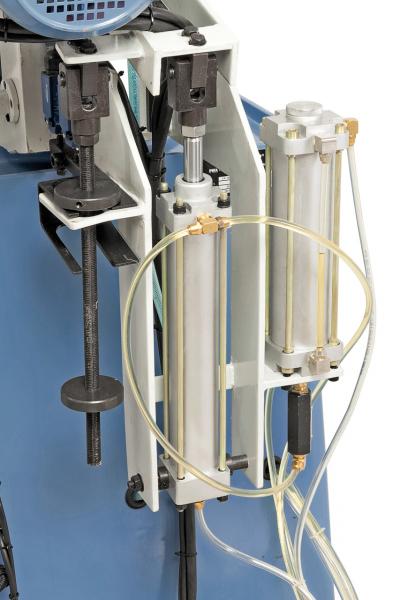

• Pneumat. Lowering of the saw head with adjustable infeed and retraction speed
• 2 cutting speeds - excellent for sawing profiles, pipes, solid materials made of iron, stainless steel and non-ferrous metals

How semi-automatic operations work:

• Pneumatic clamping of the vice
• Pneumatic lowering of the saw head for cutting
• After cutting - saw head moves to starting position
• Opening of the pneumatic vice

Scope of delivery Bernardo semi-automatic metal circular saw CS 350 SA

• Coolant device with filter
• Pneumatic vice
• Foot pedal
• Underframe

Technical data Bernardo semi-automatic metal circular saw CS 350 SA
