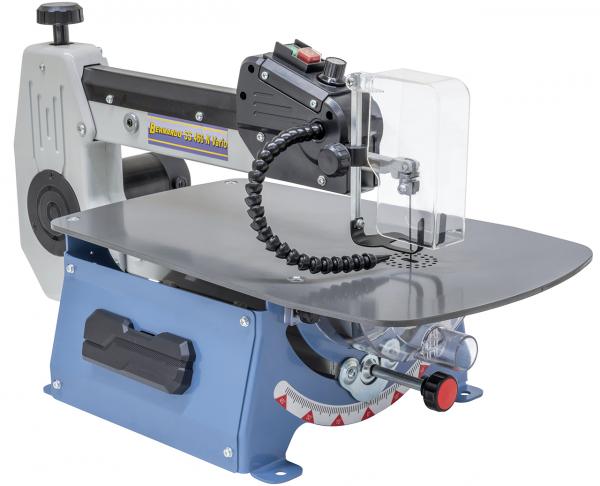

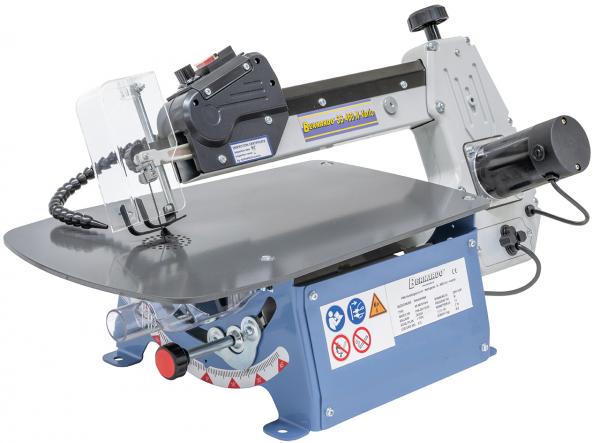

Bernardo scroll saw SS 460 N Vario / 230 V
NEW
With the SS 460 N Vario scroll saw, you can easily cut various materials such as wood, plastics, non-ferrous metals, polystyrene and similar. The cutting speed can be optimally adapted to the material to be processed thanks to the infinitely variable stroke rate adjustment.
Features Bernardo scroll saw SS 460 N Vario / 230 V

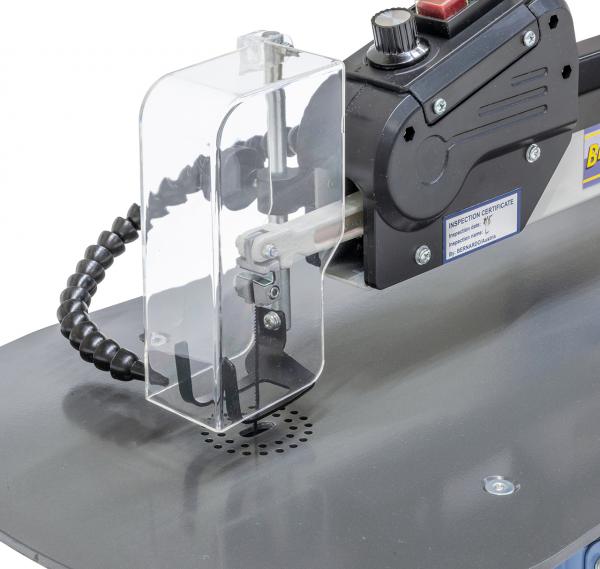

- Including blow-out device for optimum view of the cutting line
- Easy saw blade change thanks to quick clamping system
- Infinitely variable stroke rate adjustment for optimum adaptation to the respective material
- Sturdy and torsion-resistant aluminium machine housing
- Suitable for use with commercially available fretsaw blades with and without cross-pin

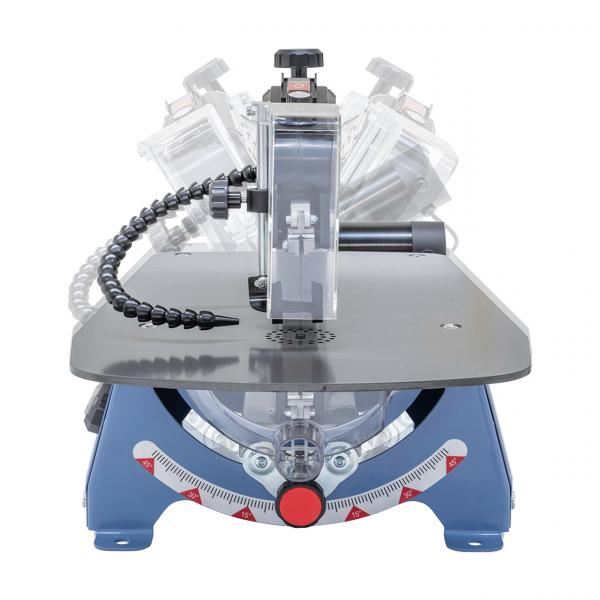

- Swivelling saw arm for mitre cuts from -45° to + 45°
- Ideal for internal and external cuts and for cutting very tight radii
Scope of delivery Bernardo scroll saw SS 460 N Vario / 230 V
- Fretsaw blades 130 mm for wood, plastic (12 pcs. no. 1 / 3 / 7 each)
- Fretsaw blades 130 mm for metal (12 each no. 0 / 3 / 7)
- Saw blade guard
- Workpiece hold-down device
- Blow-out device
- Operating tool
Technical data Bernardo scroll saw SS 460 N Vario / 230 V
Projection | 460 mm |
Cutting height 90° / 45° | 75 / 30 mm |
Saw blade length | 130 mm |
Stroke rate, infinitely variable | 550 - 1550 /min. |
Table size | 540 x 350 mm |
Saw bow swivelling range | -45° to +45° |
Suction connection Ø | 35 mm |
Motor power | 120 W |
Tension | 230 V |
Machine dimensions (W x D x H) | 370 x 760 x 400 mm |
Weight approx. | 21 kg |
