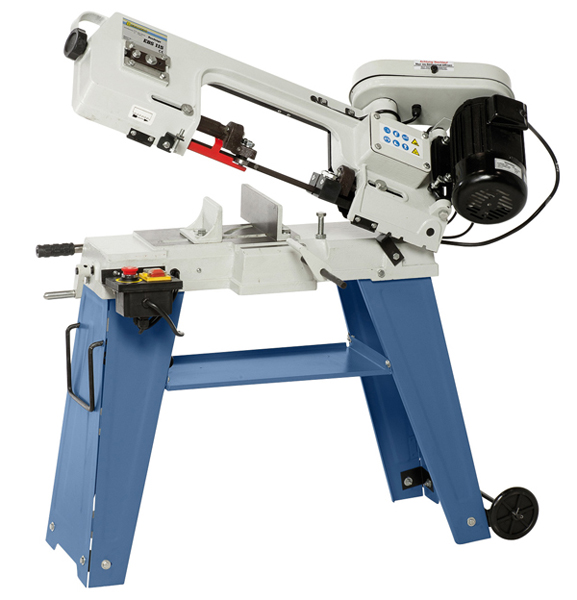

Bernardo sawing machine EBS 115 - 230 V

Mobile Preview: Bernardo sawing machine EBS 115 - 230 VEBS 115 - 230 V

Description

Description

The EBS 115 vertical and horizontal bandsaw is one of our most established models for vertical and horizontal cutting. Unbeatable in terms of price-to-performance ratio, this machine features high versatility, making it ideal for both craftsmen and amateurs.

Features Bernardo sawing machine EBS 115 - 230 V

Vise adjustable for mitre cutting (90° to 45°)
Cutting pressure adjustable to the respective workpiece
Can also be used vertically for cutting sheet metal

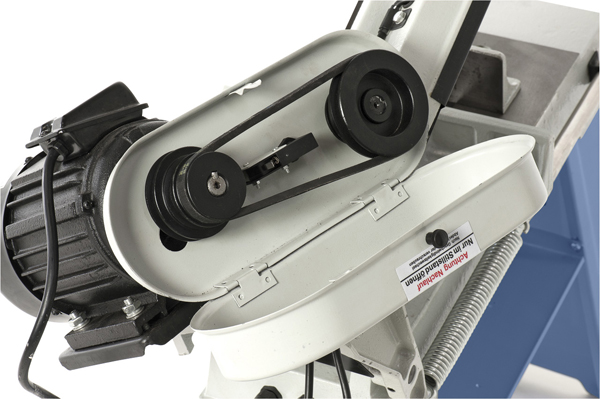

3 speeds adjustable with V-belt
Cast iron saw bow guarantees vibration-free operation
Including workpiece stop for rational working
Chassis and transport handle for easy relocation
Automatic saw blade switch-off after end of cut
Optimum price-performance ratio, ideal for the do-it-yourselfer

Scope of delivery Bernardo sawing machine EBS 115 - 230 V

Saw band
Quick-action vice
Workpiece stop
Support table
Automatic limit stop
Mobile machine base
Separate emergency stop button according to CE

Available special accessories Bernardo sawing machine EBS 115 - 230 V

Saw band HSS 1638 x 13 x 0,65 - 14 ZpZ (Art.Nr.:47-1010)
Saw band HSS 1638 x 13 x 0,65 - 8 ZpZ (Art.Nr.:47-1011)
Saw band BiFlex 1638 x 13 x 0,65 - 14 ZpZ (Art.Nr.:47-1012P)
Saw band BiFlex 1638 x 13 x 0,6 - Vario 6/10 ZpZ (Art.Nr.:47-1014)

Technical data Bernardo sawing machine EBS 115 - 230 V

Cutting range around 90	100 mm
Cutting range flat 90°	100 x 150 mm
Cutting range around 45	76 mm
Cutting range flat 45°	76 x 115 mm
Working height	610 mm
Saw band dimension	1638 x 13 x 0,65 mm
Cutting speeds	20 / 29 / 50 m/min
Motor output power S1 100%	0,37 kW
Motor input power S6 40%	0,55 kW
Voltage	230 V
Machine dimension (L x D x H)	895 x 400 x 950 mm
Weight approx.	62 kg
