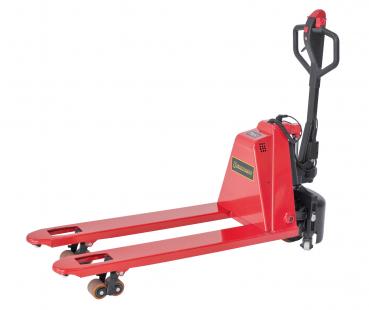

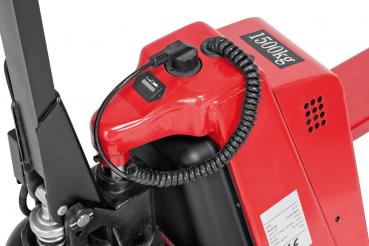

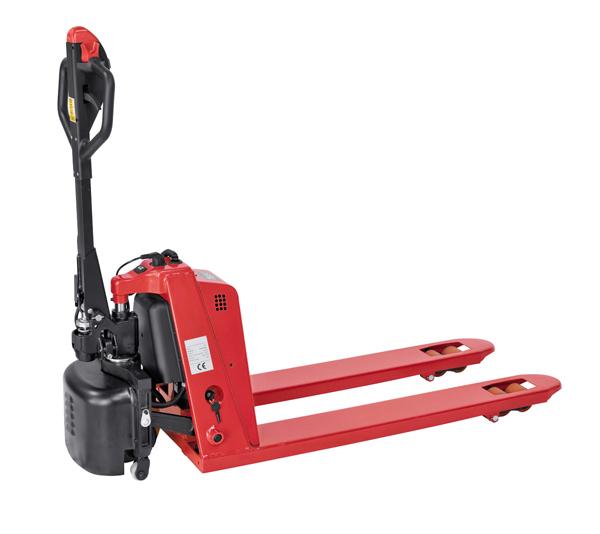

Bernardo PHW 1.5 semi-electric pallet truck

Load capacity

1500 kg

Load centre

600 mm

Fork length

1140 mm

Fork width

160 mm

Fork height

50 mm

Support width

540 mm

Clear fork width

220 mm

Lowered fork height

90 mm

Max. lifting height

200 mm

Steering angle

90°

Turning radius

1430 mm

Travel speed with load / without load

3.0 / 3.3 km/h

Gradeability with load / without load

5 / 8 %

Castor dimensions

Ø 220 x 65 mm

Fork roller dimensions

Ø 74 x 70 mm

Engine power

500 W

Battery voltage

2 x 12 V

Weight approx. (incl. battery)

160 kg
