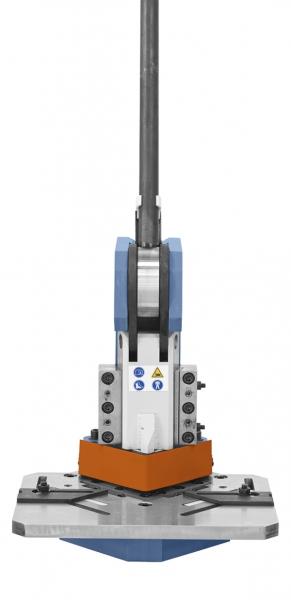

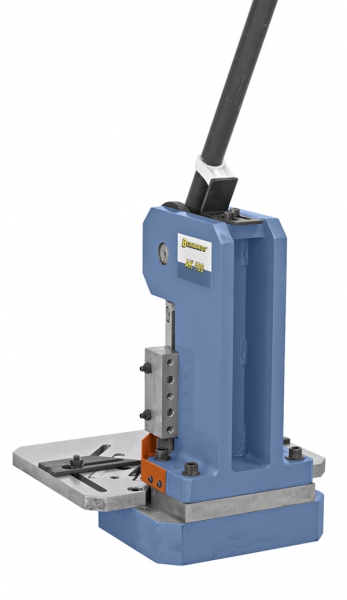

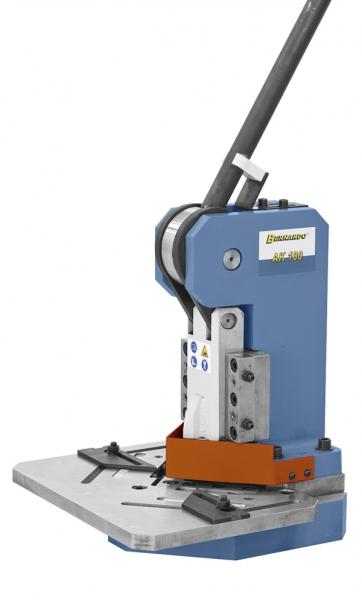

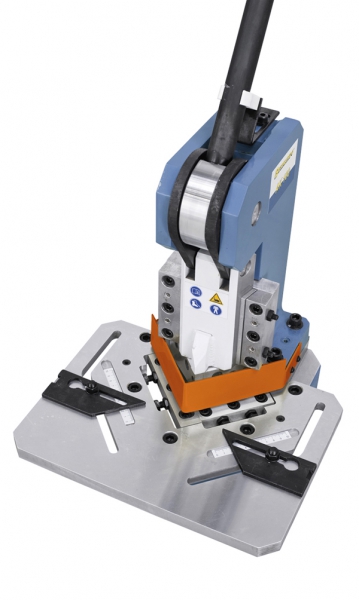

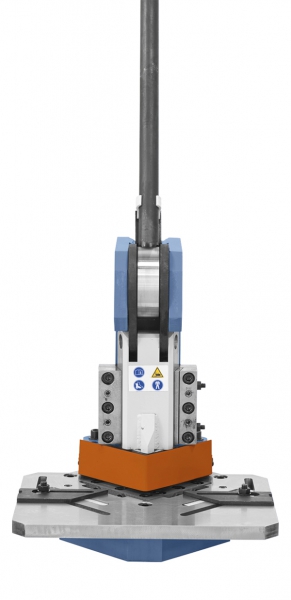

Bernardo Notching machine AK 100
Properties Bernardo Notching machine AK 100
- Torsion-free construction made of high quality cast iron
- Notch with burr-free cut, without deformation of the cutting edges
- Durable precision by re-adjustable guides
- Mechanical power transmission by means of eccentric
- Cuttings blade made of surface hardened tool steel
- For punching corners, shapes, etc. up to max. 100 x 100 mm
- Adjustable stops with scales, ideal for serial production
Standard accessories Bernardo Notching machine AK 100
- 1 set cutting knives
- 2 material fence
- Protective cover
Technical specifications Bernardo Notching machine AK 100
| Sheet thickness max. (400 N / mm2) | 3,0 mm |
| Max. cutting length at 90° | 100 x 100 mm |
| Cutting angle | 90° |
| Stroke | 30 mm |
| Table size | 380 x 280 mm |
| Width | 380 mm |
| Depth | 380 mm |
| Height | 1400 mm |
| Weight approx. | 90 kg |
