Bernardo MSM 400 C Motor beading machine
Features Bernardo MSM 400 C motorized beading machine
- Powerful drive motor for processing sheet metal 2.5 mm thick

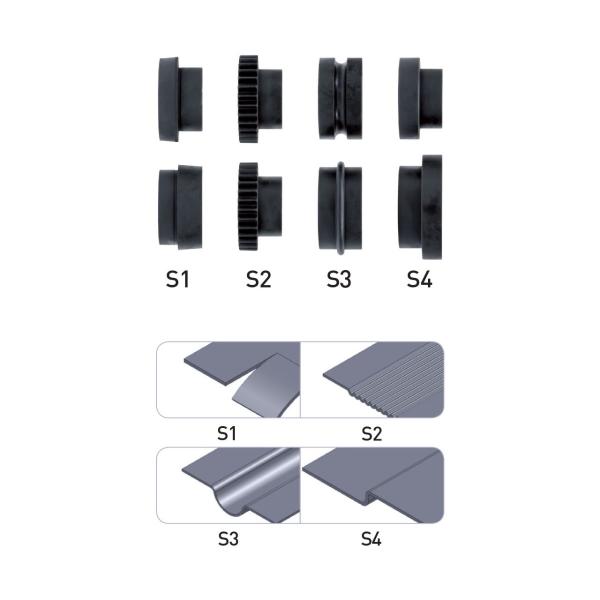

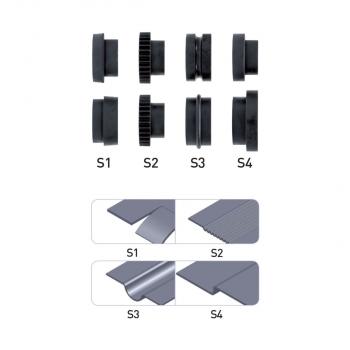

- 4 pairs of beading and flanging rollers included
- Right-left rotation as standard, controlled by foot pedal
- Large projection for attaching deep beads
- Extended range of application by 8 different, optionally available roller pairs
- Adjustable depth stop for precise working
- For the production of various beads, e.g. connecting bead, stiffening bead
Scope of delivery:
- 4 pairs of beading and flanging rollers
- Foot pedal with emergency stop
- Stop
- Operating tool
Available special accessories:

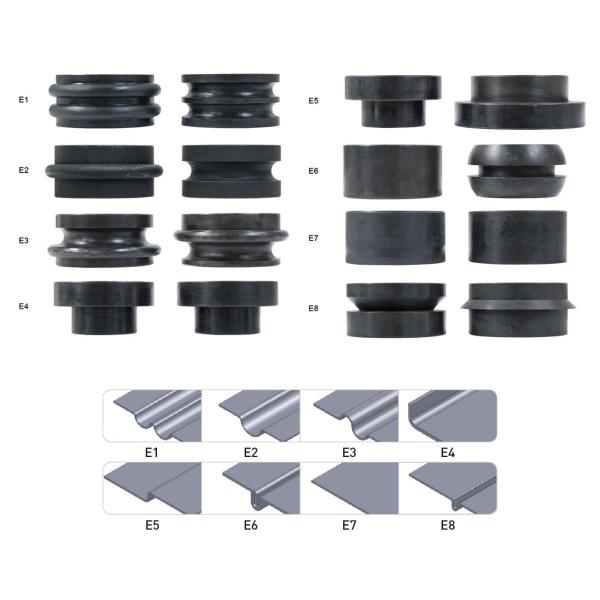

- Special rollers type E1 (Art.No.:06-6258)
- Special rollers type E2 (Art.No.:06-6259)
- Special rollers type E3 (Art.No.:06-6260)
- Special rollers type E4 (Art.No.:06-6261)
- Special rollers type E5 (Art.No.:06-6262)
- Special rollers type E6 (Art.No.:06-6263)
- Special rollers type E7 (Art.No.:06-6264)
- Special rollers type E8 (Art.No.:06-6265)
Technical data Bernardo MSM 400 C Motor-driven beading machine
| Sheet thickness max. | 2.5 mm |
| Roll centre distance | 115 mm |
| Invitation | 385 mm |
| Shaft diameter | 40 mm |
| Speed | 20 rpm |
| Engine power | 1.5 kW / 400 V |
| Depth | 1350 mm |
| Width | 520 mm |
| Height | 1160 mm |
| Weight approx. | 235 kg |
