Bernardo milling machine drilling machine KF 25 L Vario
The KF 25 L Vario drilling and milling machine comes complete with a digital speed and spindle stroke display as a standard feature. Additionally, this model is rounded off with a 490 mm x-axis travel. The machine is very popular among both professionals and model-marker along with all areas of training.
Features Bernardo milling machine drilling machine KF 25 L Vario
- Wide range of applications, such as thread cutting, groove milling, horizontal slotting etc.
- Left and right rotation for thread cutting comes standard

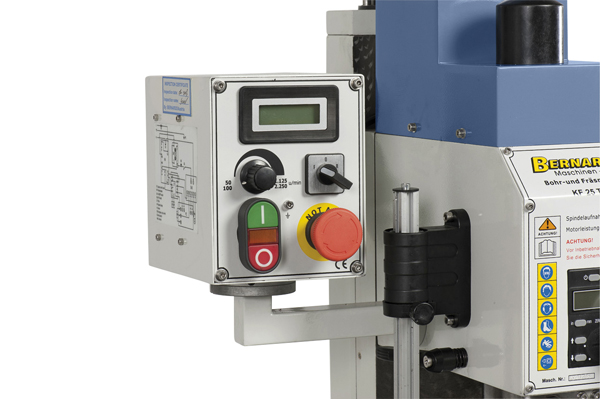

- Ergonomically arranged control elements
- Large cross table with scale
- Stepless speed change for ideal adjustment to the workpiece
- 2-step gear unit for optimal power transmission
- Taper roll bearings guarantee high spindle concentricity (≤ 0,015 mm)
- Mill head tilts to both sides allowing angular boring, milling of bevels etc.
- Digital spindle stroke and speed display come standard
- Dovetail guiding in x-, y- and z-axis, adjustable via gibs
- Spindle adjustment via handle, fine feed via handwheel
- Incl. EMC filter; protect electrical equipment against electromagnetic interferences
Standard accessories Bernardo milling machine drilling machine KF 25 L Vario
- Drill chuck arbor MT 2 / B 16
- Drawbar
- Table length 700 mm
- Digital display of spindle stroke
- Digital display of speed range
- EMC filter according to CE standard
- Height adjustable protective cover
- Tools
Technical specifications Bernardo milling machine drilling machine KF 25 L Vario
| Drilling capacity in steel | 20 mm |
| Face mill capacity max. | 63 mm |
| End mill capacity max. | 20 mm |
| Distance spindle to column | 170 mm |
| Distance spindle/table min./max. | 45/325 mm |
| Spindle stroke | 52 mm |
| Spindle speed, stepless | 50 - 1125 / 100 - 2250 rpm |
| Spindle taper | MT 2 |
| Table size | 700 x 180 mm |
| Travel (x / y) | 490 / 150 mm |
| Mill head tiltable | -90° to +90° |
| Height adjustment of mill head | 275 mm |
| T-slot size | 12 mm |
| Motor power output S1 100% | 0,60 kW / 230 V |
| Motor power input S6 40% | 0,90 kW / 230 V |
| Machine dimension (W x D x H)* | 950 x 560 x 930 mm |
| Weight approx. | 120 kg |
without stand
