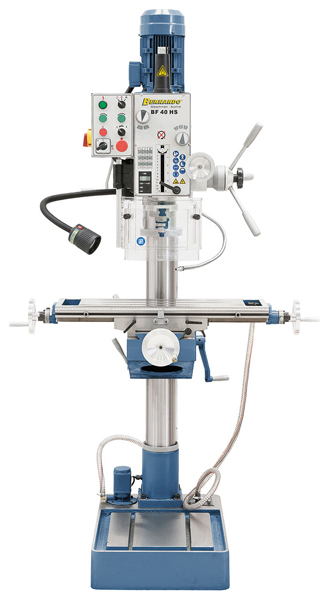

Bernardo milling machine drilling machine BF 40 HS
The BF 40 HS is suitable for drilling, milling and countersinking. The high versatility – gear head tilts and rotates – make this machine very popular for repair shops and training workshops.
Features Bernardo milling machine drilling machine BF 40 HS
- Numerous application possibilities, such as drilling, milling, thread cutting, ...
- Surface treated machine base to mount particularly large workpieces
- 2-speed-motor with 12 speed settings
- Left and right turning for thread cutting
- Gear selector switch makes speed change quick and easy
- Gear head 180° tiltable, 360° rotatable and adjustable in height
- Polished gear wheels, in oil bath, allow smooth running
- Star handle allows spindle adjustment, handwheel allows fine feed
Standard accessories Bernardo milling machine drilling machine BF 40 HS
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Drawbar M 16
- Morse taper drill sleeve MT 4 / 3
- Taper shell end mill holder MT 4 / 27 mm
- Height adjustable protective cover
- Digital spindle stroke indication
- Thread cutting device
- Coolant device
- LED machine light
- Longitudinal scale
- Tools
Technical specifications Bernardo milling machine drilling machine BF 40 HS
| Drilling capacity in steel | 32 mm |
| Drilling capacity in cast iron | 40 mm |
| Milling head max. | 80 mm |
| Distance spindle to column | 280 mm |
| Spindle speeds | (12) 75 – 3200 rpm |
| Spindle taper | MT 4 |
| Spindle stroke | 120 mm |
| Table size | 730 x 210 mm |
| T-slot size | 14 mm |
| Distance spindle to table max. | 640 mm |
| Distance spindle to base plate max. | 1185 mm |
| Travel (x / y) | 480 / 210 mm |
| Mill head tiltable | -90° to +90° |
| Height adjustment of mill head | 265 mm |
| Column diameter | 115 mm |
| Base plate | 365 x 375 mm |
| Motor power output S1 100% | 1,1 / 1,5 kW (400 V) |
| Motor power input S6 40% | 1,5 / 2,2 kW (400 V) |
| Machine dimension (W x D x H) | 1070 x 800 x 2060 mm |
| Weight approx. | 360 kg |
