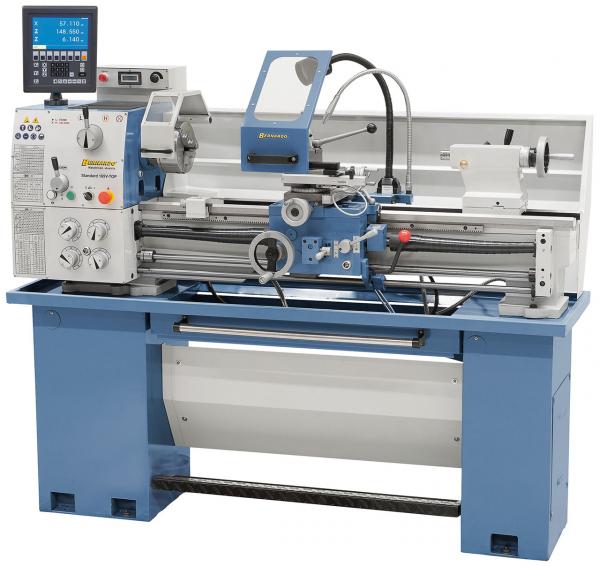

Features Bernardo lathe Standard 165 V-Top incl. 3-axis digital display

The Standard 165 V-Top is a modern, state-of-the-art machine. Due to the great ease of operation, this model is particularly suitable for training workshops, the training sector and schools. In addition, this model is equipped as standard with a variable speed control for optimum adjustment of the cutting speed.

Delta frequency converter as standard for high torque in the lower speed range and almost constant speed under load
Infinitely variable speed control, the set speed is read on a digital display
Ideal for technical schools, repair shops and training workshops
Modern main spindle bearing with angular contact ball bearing in precision design
Single-lever clamping for tailstock, movable for taper turning
Hardened and ground gear wheels and shafts in the gear head
Optimally suited for machining steel, non-ferrous materials and plastics
Removable bridge for machining workpieces with large diameters
To minimise the effects of vibration, the solid prismatic bed is additionally equipped with ribs

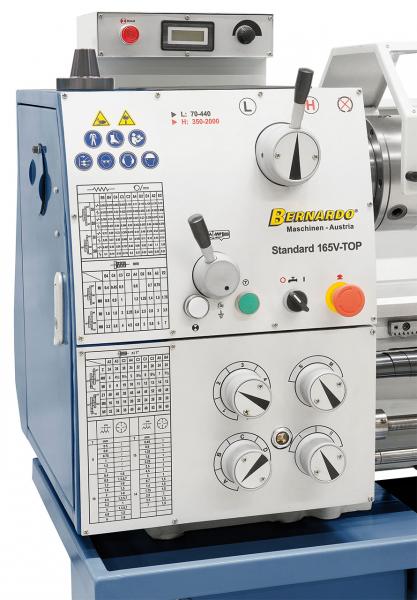

The speed and feed adjustment is simply designed, smooth-running and precisely switchable

Scope of delivery Bernardo lathe Standard 165 V-Top incl. 3-axis digital display

3-axis digital display ES-12 V with LCD display

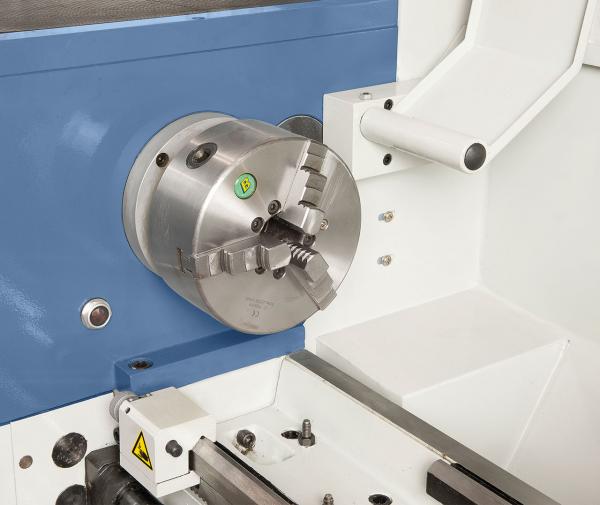

3-jaw chuck DK11-160 mm / D4
Faceplate 200 mm / D4, according to DIN 55029
Fixed steady rest - passage diam. max. 60 mm
Travelling steady rest - passage diam. max. 60 mm
Clamping disc 250 mm

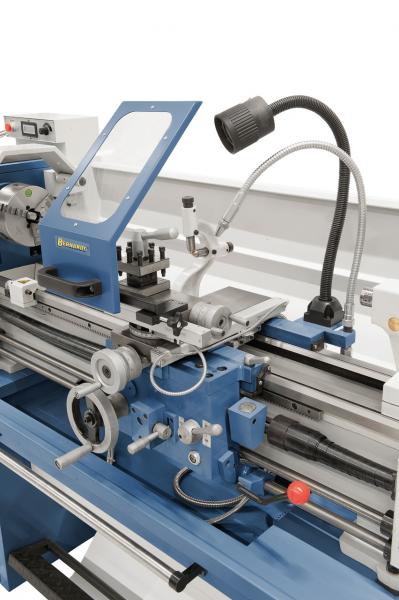

Quick-change toolholder system Multifix with 4 inserts
Safety device for steel holder
Slipping clutch
Micrometer longitudinal stop
Coolant device
Pull-out chip tray
Frequency converter
Foot pedal with brake function according to CE
Splashboard
Threaded clock
LED machine light
Digital speed indicator
Reducing sleeve
Change gears
2 centre points
Underframe
Operating tool

Technical data Bernardo lathe Standard 165 V-Top incl. 3-axis digital display

Peak width	1000 mm
Centre height	175 mm
Swing diameter over bed	350 mm
Swing diameter over crank*	450 mm
Swing diameter over cross slide	190 mm
Bed width	180 mm
Spindle bore	40 mm
Spindle mount	DIN 55029, D1-4
Speed range, infinitely variable	70 - 400 / 350 - 2000 rpm
Longitudinal feed range	(40) 0.053 - 1.29 mm/rev
Area Plan Advances	(40) 0.013 - 0.31 mm/rev
Metric threads	(32) 0,4 - 7 mm
Inch thread	(36) 4 - 60 Gg/1“
Pinole path	110 mm
Spindle sleeve holder	MK 3
Motor output power S1 100%	1,5 kW (400 V)
Motor input power S6 40%	2,2 kW (400 V)
Machine dimension (W x D x H)	1730 x 700 x 1340 mm
Weight approx.	530 kg

* Bed length removable: 220 mm
