Bernardo hollow mortising machine HM 25
Properties Bernardo hollow mortising machine HM 25

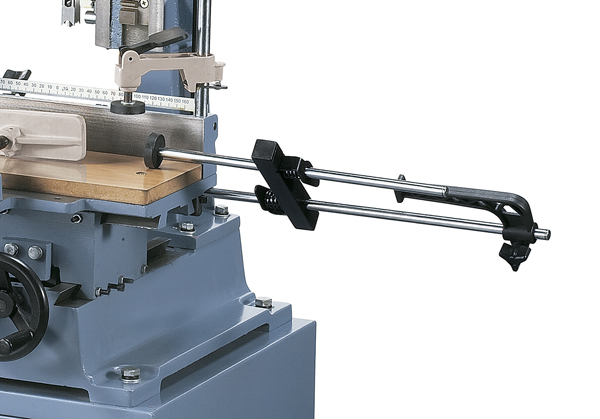

- Complete with handwheels for changing the coordinate table
- Drill chuck accessible from both sides for convenient change of mortising chisels
- Adjustable dovetail guiding in all axis

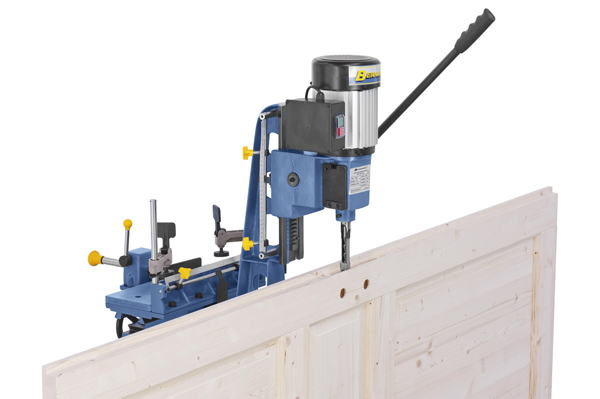

- Spindle head swivels 180°, essential for mortising works on doors
- Includes gas pressure cylinder to support mortising
- Ideal for slotting and mortising of soft and hard timbers
- Grey cast-iron machine frame eliminates vibrations and promotes accuracy
Standard accessories Bernardo hollow mortising machine HM 25:
- Drill chuck 16 mm
- 2 pcs. eccentric holder
- Longitudinal fence
- Drill depth stop with scale
- Quick clamping vice
- Gas pressure balancing cylinder
- Moveable coordinate table
Technical specifications Bernardo hollow mortising machine HM 25:
| Chisel size max. | 25,4 mm |
| Drill stroke | 230 mm |
| Max. mortising depth | 76 mm |
| Max. workpiece height | 200 mm |
| Max. workpiece width | 145 mm |
| Table size | 400 x 150 mm |
| Travel (x / y) | 175 / 150 mm |
| Speed | 2850 rpm |
| Motor power | 0,75 kW (1,0 HP) |
| Voltage | 230 V |
| Machine dimension (W x D x H)* | 430 x 610 x 1100 mm |
| Weight approx. | 100 kg |
* without stand
