Bernardo high-pressure machine vice PHV 200

Product No.:
28-2122
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
113 kg per piece
2.715,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Bernardo high-pressure machine vice PHV 200

Properties
  •
  • Can be used on modern CNC machines and machining centres
  • Mechanical / hydraulic clamping system via hand crank
  • Hardened and ground guideways
  • Integrated pull-down mechanism prevents the moving jaw from lifting and the workpiece from tilting
  • Quick adjustment of the clamping range using locking pins
  • Choice of mechanical clamping or mechanical / hydraulic clamping by moving the adjusting sleeve
  • Consistent clamping force over the entire clamping range
  • Long flat track guide of the movable jaw
  • Quick-change and cost-effective hydraulic unit
  • Various jaws available
  • Complete with turntable and 360° scale

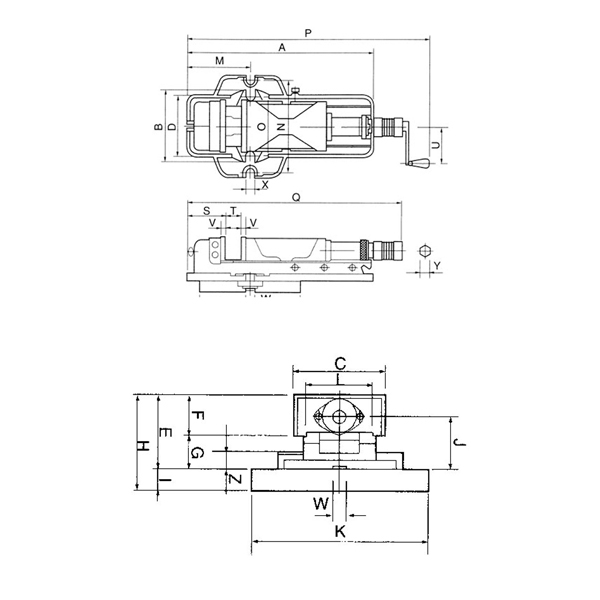

Technical Data

A

700 mm

B

280 mm

C

200 mm

D

240 mm

E

163 mm

F

63 mm

G

100 mm

H

205 mm

J

125 mm

K

400 mm

L

165 mm

M

265 mm

P

830 / 1140 mm

Q

725 / 1035 mm

R

365 mm

S

150 mm

T

300 mm

U

125 mm

V

18 mm

W

18 mm

X

22 mm

Y

14 mm

Z

36 mm

Clamping range I

0 - 110 mm

Clamping range II

100 - 210 mm

Clamping range III

200 - 310 mm

Max. clamping force

6000 kg

Weight ca.

113 kg
