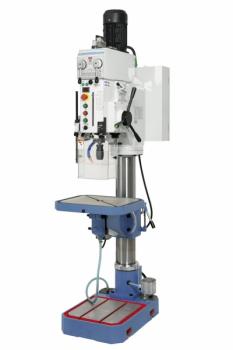

Bernardo GB 35 TH geared table and pillar drilling machine

• Equipped with motorised table height adjustment as standard
• Automatic mould ejector and thread cutting device as standard

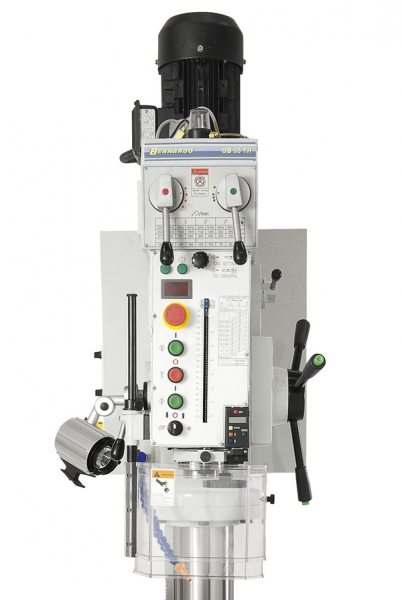

• Speed can be quickly and easily adjusted by means of a control lever on the gear head
• Digital speed display and drilling depth adjustment included in the scope of delivery
• Machined machine base (400 x 410 mm) with integrated coolant pump
• Electromechanical spindle feed for precise work
• Hardened and ground gears for smooth running
• Quality ball bearings ensure high concentricity

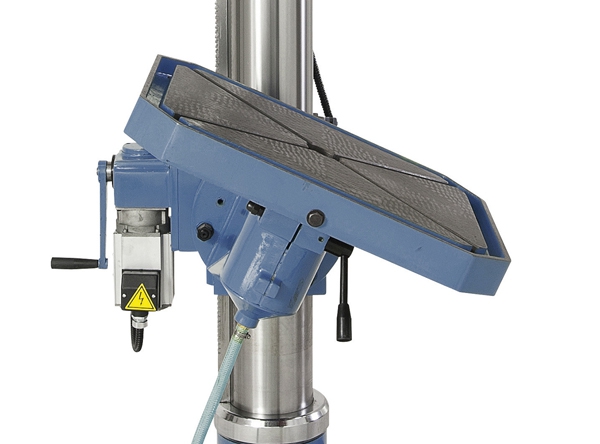

• Solid cast iron table (hand-scraped) with rotating and swivelling support surface

Scope of delivery Bernardo GB 35 TH geared table and pillar drilling machine​

• Drill chuck 1 - 13 mm / B 16
• Drill chuck mandrel MK 4 / B 16
• Reducing sleeve MK 4 / 3, MK 4 / 2

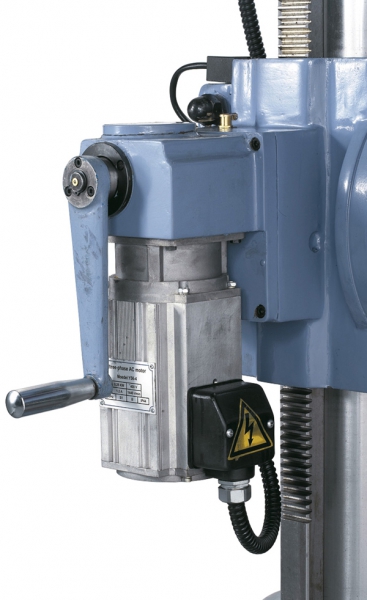

• Motorised table stroke
• Electromagnetic spindle feed
• Tapping device
• Automatic tool ejector
• Digital speed display
• LED machine light
• Coolant device
• Digital drill depth indicator
• Initial filling with Shell Tellus 46
• Height-adjustable protective cover

Available special accessories Bernardo GB 35 TH geared table and pillar drilling machine​

• Reducing bushing MK 4 / 2 (Art.No.:24-1024)
• Reducing bushing MK 4 / 3 (Art.No.:24-1025)
• Cone reamer MK 4 - MK 6 (Art.No.:24-1059)
• Cone wiper MK 4 (Art.No.:24-1062)
• Keyless drill chuck with direct mounting MK 4, 1 - 16 mm (Art.No.:24-1073)
• Keyless drill chuck 1 - 16 mm / B 16 (Art.No.:24-1082)
• Tapping attachment MK 4, M 3 - M 12 (Art.No.:24-1091)
• Tapping attachment MK 4, M 12 - M 24 (Art.No.:24-1093)
• Clamping tool assortment 58 pcs, 14 mm, M 12 (Art.No.:28-1001)
• Drilling machine vice BMH 150 (Art.No.:28-2012)
• Industrial drill press vice BMI 150 (Art.No.:28-2017)
• Industrial drill press vice BMS 140 (Art.No.:28-2019)
• Industrial drilling machine vice BMS 200 (Art.No.:28-2020)
• Twist drill set 130 pcs, HSS TiN-coated (Art.No.:41-1024)
• Twist drill set 170 pcs, HSS TiN-coated (Art.No.:41-1025)
• Twist drills HSS with Morse taper MK 2 / 3, 9-pcs. - 14,5 - 30 mm, TiN-coated, set B (Art.No.:41-1051)
• Twist drills HSS with Morse taper MK 2 / 3 - 17-pcs. - 14,5 - 30 mm, set C (Art.No.:41-1055)
• Machine shoe MS 80 (Art.No.:53-2000)
• Universal coolant concentrate RK 12, 5 litre canister (Art.No.:54-1206)

Technical data Bernardo GB 35 TH geared table and pillar drilling machine​
