The TB 20 T is a cost efficient table drilling machine with V-belt drive available with 230 V or 400 V. The great price to performance ratio makes this model an attractive choice for hobby craftsmen.
Features Bernardo drilling machine TB 20 T - 230 V
- High-quality ball bearings ensure high spindle concentricity
- Large drill table features diagonal T-slots
- Drill table tilts (±45°), height adjustment via gear rack

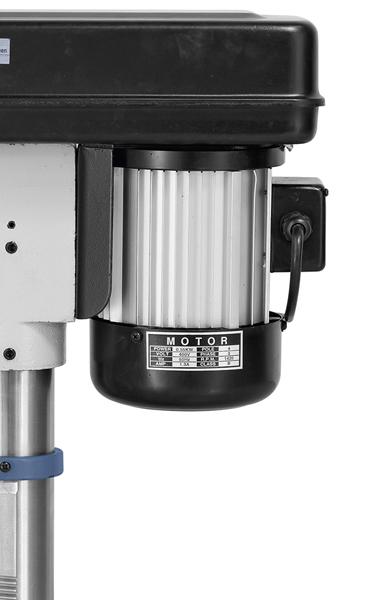

- Powerful, high-torque aluminium motor according to IP 54 standard
- High grade keyless drill chuck comes standard
- Treated machine base allows clamping of oversize workpieces
- Features T-slots on polished base
- Ergonomical handles allow for high work comfort
Standard accessories Bernardo drilling machine TB 20 T - 230 V
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 2 / B 16

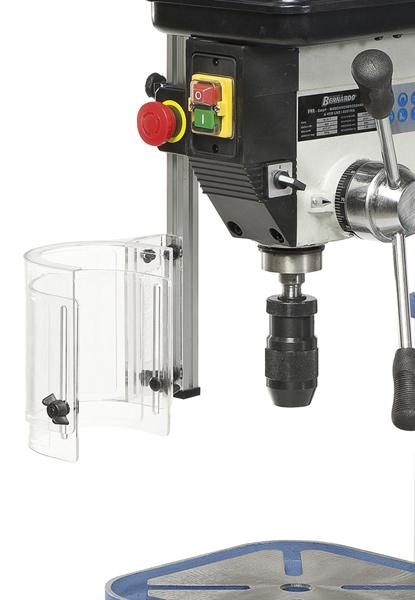

- Height adjustable protective cover
- Separate emergency stop switch
- T-slot nuts
- Tools
Technical specifications Bernardo drilling machine TB 20 T - 230 V
|
Drilling capacity max. |
20 mm |
|
Drill chuck |
1 - 16 mm / B 16 |
|
Morse taper |
MT 2 |
|
Spindle speed |
(16) 180 - 2770 rpm |
|
Distance spindle to column |
180 mm |
|
Drilling table tiltable |
-45° to 45° |
|
Distance spindle to table max. |
415 mm |
|
Distance spindle to base |
605 mm |
|
Spindle stroke |
80 mm |
|
Column diameter |
72 mm |
|
Table size / T-slot size |
290 x 290 mm / 16 mm |
|
Work surface base |
205 x 205 mm |
|
Motor power output S1 100% |
0,55 kW / 230 V |
|
Motor power input S6 40% |
0,80 kW / 230 V |
|
Machine dimension (W x D x H) |
380 x 620 x 1000 mm |
|
Weight approx. |
54 kg |
