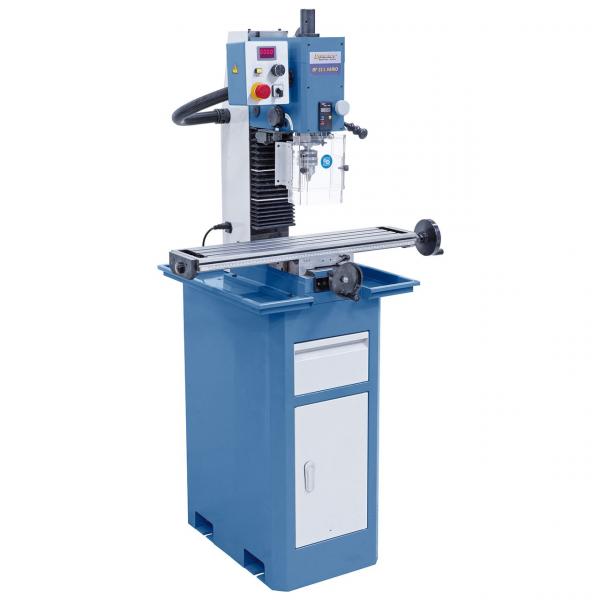

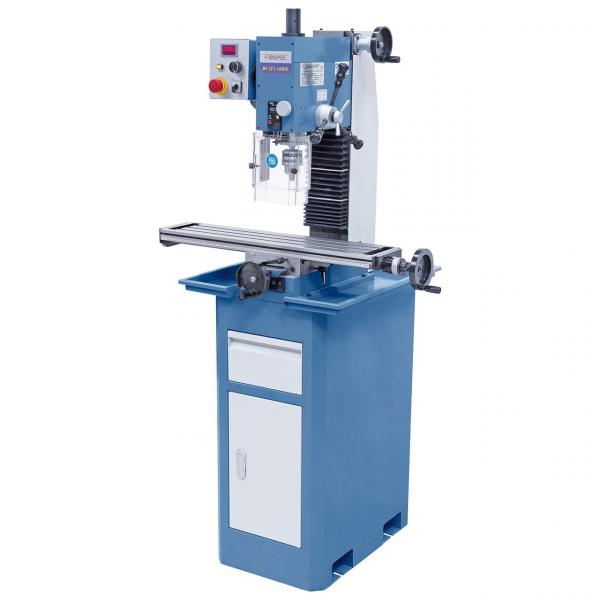

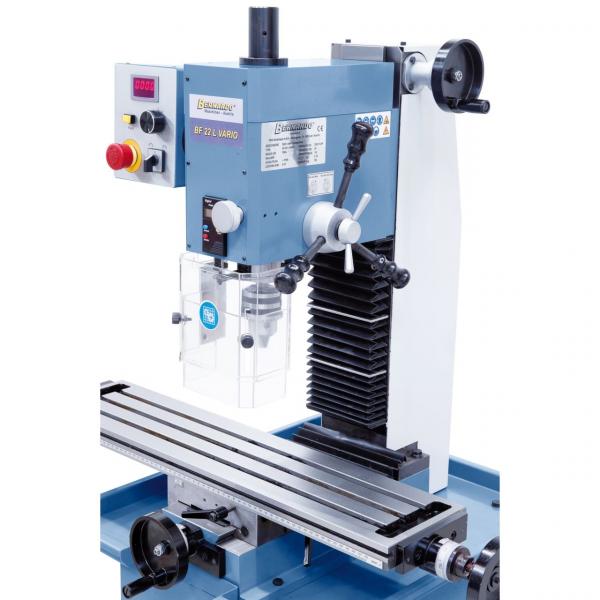

Bernardo Drilling Machine Milling Machine BF 22 L Vario

Mobile Preview: Bernardo Drilling Machine Milling Machine BF 22 L Vario

Description

Description

Features Bernardo Drilling Machine Milling Machine BF 22 L Vario

The basic version of the BF 22 L Vario drilling and milling machine is already equipped with a digital speed and quill stroke display. This machine is used by professional users, in model making and in training.

Variable speed setting, speed can be infinitely adjusted to the workpiece

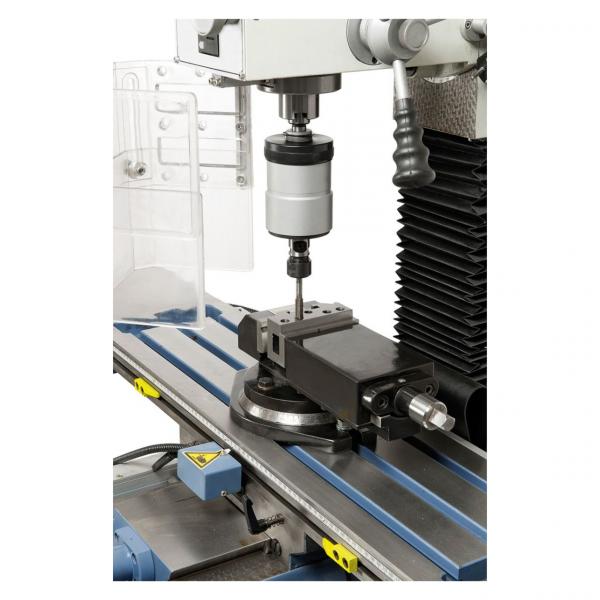

Versatile application possibilities, e.g. tapping, groove milling, slot milling, ...

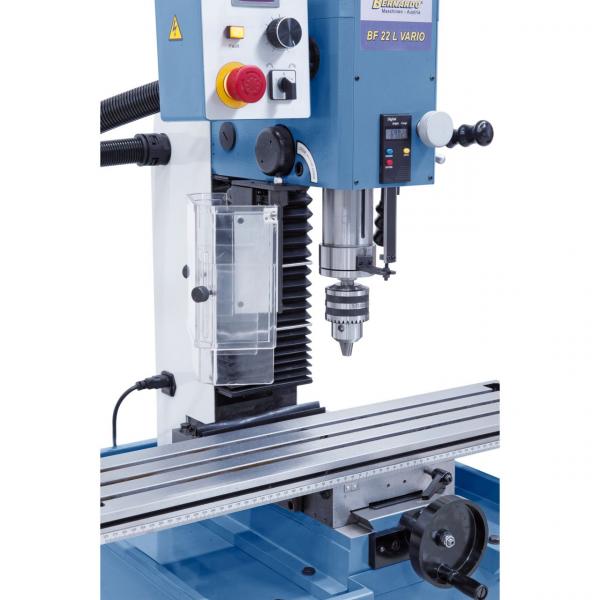

With right/left-hand rotation device and digital quill stroke display as standard
Dovetail guide for x-, y- and z-axis, adjustable via wedge bars
High concentricity of the quill due to taper roller bearings (≤ 0.015 mm)
Ergonomically positioned switching and operating elements
Precise quill adjustment during milling by means of handwheel
Smooth running due to ground gear wheels
Wide speed range from 100 - 2000 rpm

Scope of delivery Bernardo BF 22 L Vario drilling machine milling machine

Technical Data Bernardo Drilling Machine Milling Machine BF 22 L Vario

Drilling power in steel	20 mm
Face milling cutter max.	50 mm
End mill max.	16 mm
Thread cutting max.	M 12
Outreach	160 mm
Distance spindle/table min./max.	115 - 345 mm
Quill stroke	70 mm
Spindle speed, infinitely variable	100 - 2000 rpm
Spindle mount	MK 3
Table size	700 x 160 mm
Travel (x / y)	500 / 165 mm
Height adjustment milling head	230 mm
T-slot size	12 mm
Motor output power S1 100%	0,75 kW / 230 V
Motor input power S6 40%	1,1 kW / 230 V
Machine dimension (W x D x H)*	890 x 620 x 860 mm
Weight approx.	104 kg
* without underframe
