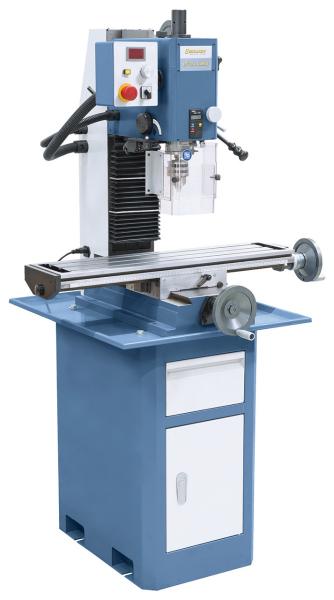

Bernardo BF 28 L Vario drilling and milling machine

Even the basic version of the BF 28 L Vario drilling and milling machine is equipped with a digital speed and quill stroke display. This machine is used by professional users, in model making and in the training sector.

Features Bernardo BF 28 L Vario drilling and milling machine​

• Variable speed setting, speed can be infinitely adjusted to the workpiece
• Versatile application possibilities, e.g. tapping, slot milling, slot milling, ...
• Standard with right-left rotation device and digital quill stroke display

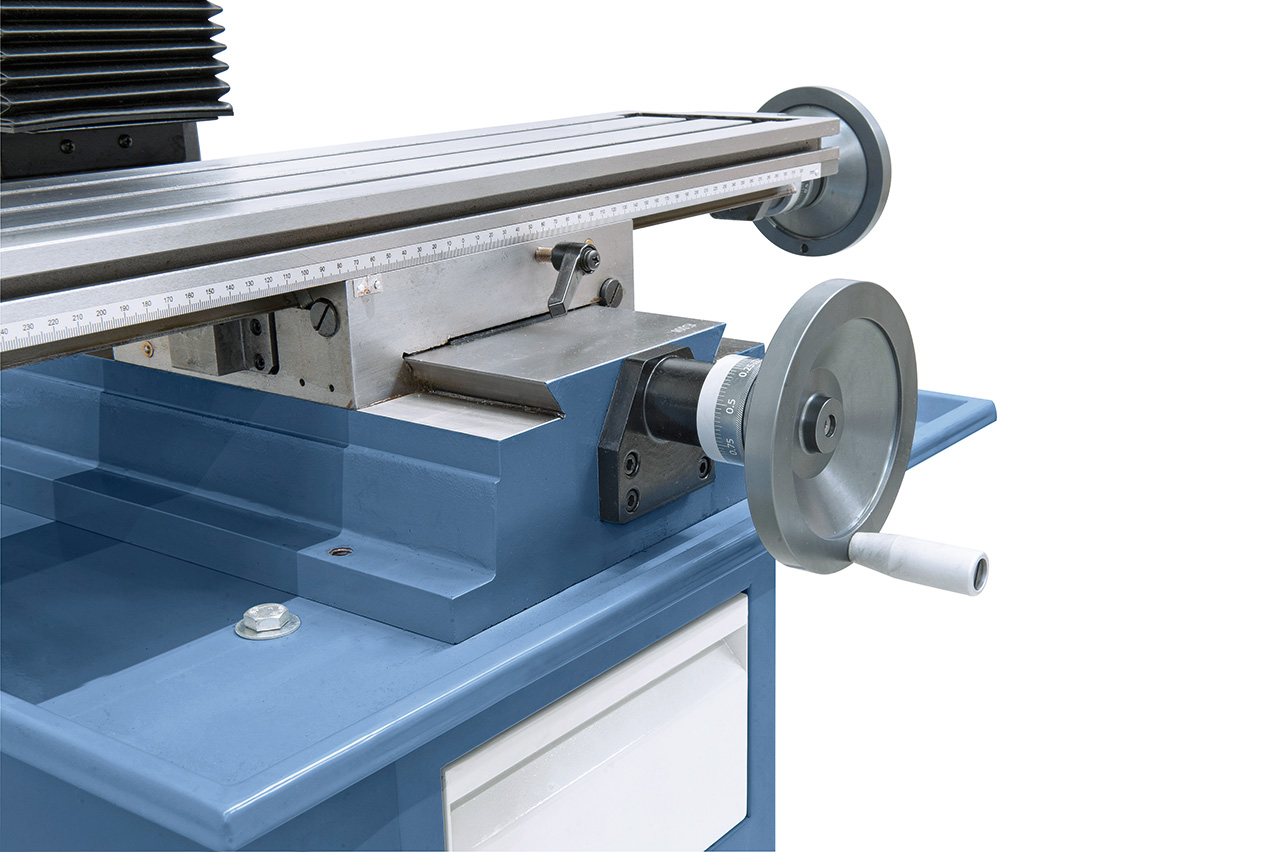

• Dovetail guide for x-, y- and z-axis, adjustable via wedge bars
• High concentricity of the sleeve due to taper roller bearings (≤ 0.015 mm)
• Thread cutting device as standard
• Ergonomically positioned switching and operating elements
• Precise quill feed during milling by means of handwheel
• Smooth running due to ground gearwheels
• Wide speed range (2 steps) from 100 - 5000 rpm

Scope of delivery Bernardo BF 28 L Vario drilling and milling machine​

• Gear rim drill chuck 1 - 13 mm / B 16
• Drill chuck arbor MK 3 / B 16
• Tightening spindle M 12

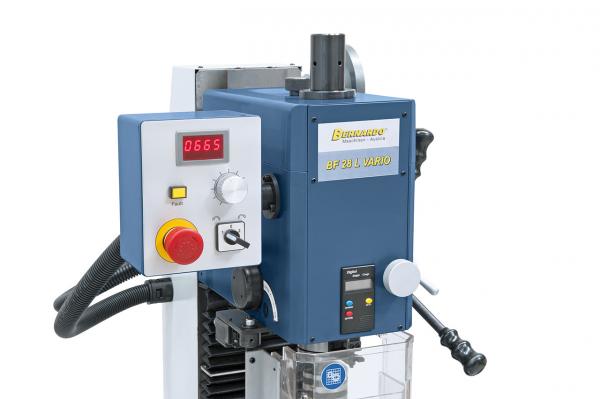

• Digital speed display
• Digital drilling depth display
• Height-adjustable protective cover
• Operating tool

Technical data Bernardo BF 28 L Vario drilling and milling machine​
