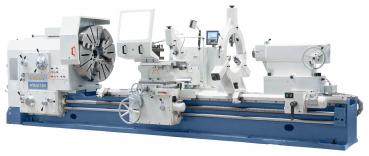

Bernardo APOLLO 2000 x 5000 heavy duty lathe

Product No.:
03-1387XL
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
23200 kg per piece
Price on request
Ask about product
Description

Features Bernardo APOLLO 2000 x 5000 heavy duty lathe​

  • The bed is provided with strong ribs to stiffen the bed guide and to minimize the influence of vibrations
  • The transmission of the rotary motion (forwards / backwards) is effected via a drive shaft with hydraulic coupling
  • The gear wheels are largely dimensioned, hardened and precision ground
  • The closed gear box allows a large number of feeds and thread pitches
  • Wide speed range with 33 speeds for machining a wide variety of workpieces
  • Soft start of the main spindle by the mechanical multi-disc clutch
  • The large dimension guideways are induction hardened and ground

Scope of delivery Bernardo APOLLO 2000 x 5000 heavy lathe​

  • 3-axis digital display ES-12 V with LCD display

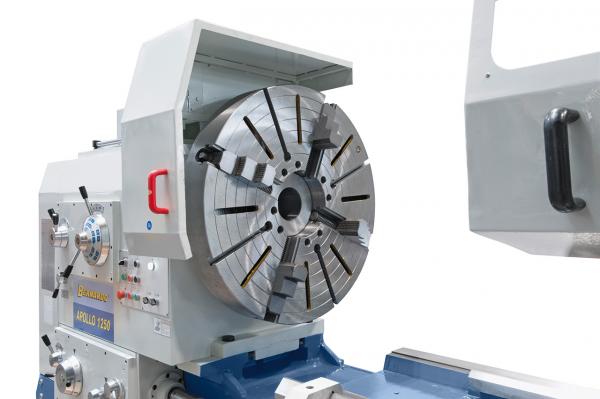

  • face plate 1600 mm
  • Fixed bezel - Diamond passage 400 - 750 mm
  • rotating bezel - passage diam. 50 - 220 mm
  • Motorized tailstock
  • Centering points
  • Central lubrication
  • First filling with Shell Tellus 46
  • Quadruple tool holder
  • Protective device for quadruple toolholder
  • Coolant system
  • LED machine light
  • Reducing sleeves
  • Foundation bolts

Technical data Bernardo APOLLO 2000 x 5000 heavy lathe​

Top of the range

5000 mm

Turning diameter



abed

2000 mm

via support

1600 mm

Travels



x-axis

1020 mm

z-axis

4800 mm

z1-axis

200 mm

Max. workpiece weight

10,000 kg

Bed width

1100 mm

Swivel range top slide

± 180°

Spindle speeds (forward / backward)

(21) 2 - 200 / (12) 2.5 - 200 rpm

Spindle bore

130 mm

Spindle mount

ISO A2-15

Feed



x-axis | z-axis | z1-axis

0.064 - 12 mm/rev |0.032 - 6 mm/rev | 0.016 - 3 mm/rev

Rapid traverse



x-axis | z-axis

1870 mm/min | 3740 mm/min

Thread cutting



metric | diametric

(45) 1 - 120 mm | (42) 30 - 1/4 DP

Modul | whitworth

(46) 0.5 - 60 mm | (48) 0.5 - 60 GPZ

Tailstock quill cone / Ø

MK 6 / 200 mm

Tailstock quill stroke

300 mm

Tailstock cross adjustment

± 2.5 mm

Engine power

30 kW

length x width

8.1 x 2.2 m

Height

2.4 m

Weight approx.

23,200 kg
