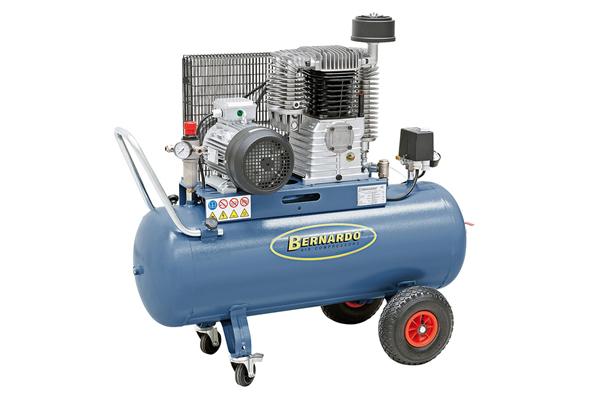

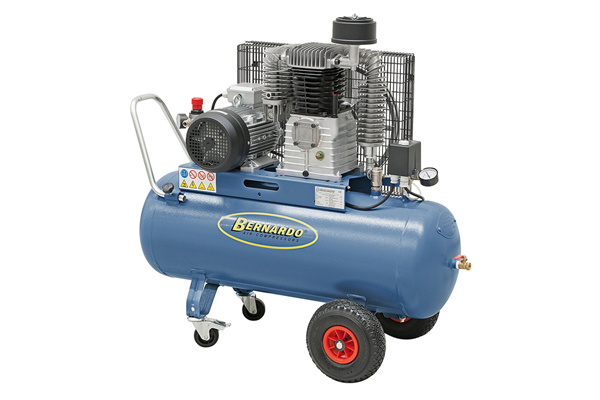

Bernardo AC35/100/600/F/D Compressor
Technical specifications Bernardo AC35/100/600/F/D Compressor
Tank capacity | 100 l |
Suction capacity | 600 l/min |
Fill capacity approx.* | 460 l/min |
Speed | 1450 rpm |
Cylinder / stages | 2 / 1 |
Maximum pressure | 10 bar |
Motor power | 4,0 kW (5,5 HP) |
Voltage | 400 V/ 50 HZ |
Sound pressure level | 78 dB(A) |
Machine dimension (L x W x H) | 1160 x 520 x 1080 mm |
Weight approx. | 92 kg |
* according VDMA 4362, measured at 70% of the maximum pressure |
