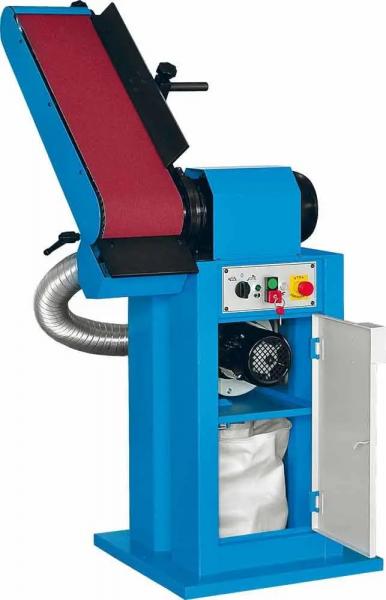

Belt sander Aceti ART 16

Features Belt sander Aceti ART 16

• Free-standing universal belt sander
• For machining flat grinding surfaces and contact rollers
• Belt dimensions: 120 x 1500 mm
• Three-phase motor: 400 V 1.8 kW
• Speed ranges: 1400 / 2800 rpm
• Cutting speeds: 10 / 20 m/s

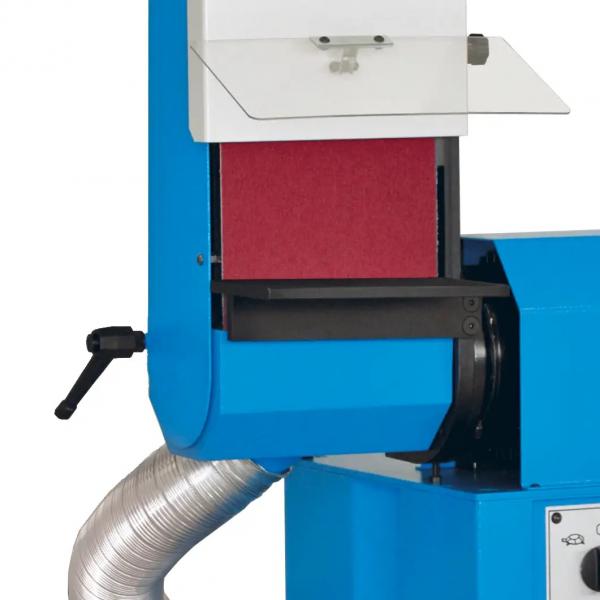

• Grinding table: 120 x 470 mm
• Contact roller: Ø135 mm
• Extraction connection: Ø80 mm

Scope of application Belt sander Aceti ART 16

• In the metalworking industry and locksmith's shops
• Also for stainless steel, non-ferrous metals and plastics
• For chamfering, deburring and grinding visible surfaces
• For machining small, precise components

Set up Belt sander Aceti ART 16

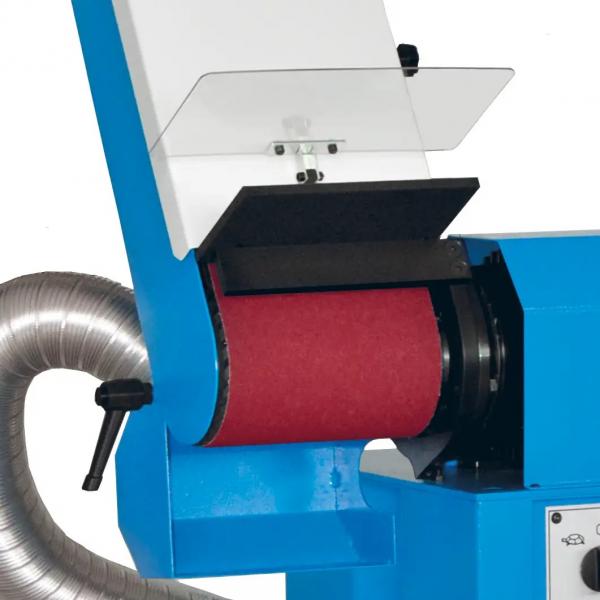

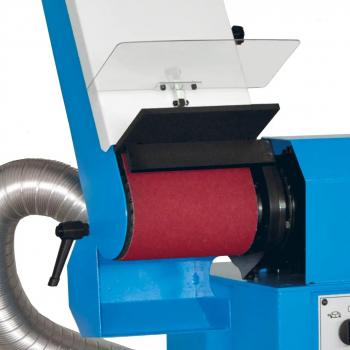

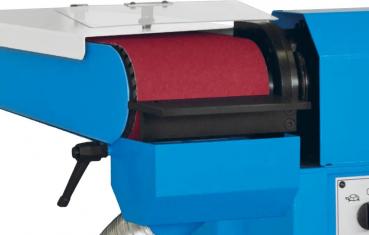

• Rubberised, spiral-grooved and balanced contact roller made of aluminium
• Belt tension via spindle drive
• Belt run adjustable via guide roller
• Belt change by swivelling or dismantling the spark boxes
• Grinding arm can be clamped continuously between 0 and 90°
• Support table can be mounted on the surface grinding surface and contact roller
• Spark box can be adjusted and removed on the surface grinding surface and contact roller
• Powerful and low-vibration three-phase motor
• Motor suitable for continuous operation
• Large bearings guarantee smooth running with low noise levels
• Stable base cabinet on four rubberised feet
• Main switch lockable

Optional accessories Belt sander Aceti ART 16

We also offer the following optional extras:

• Extraction system – IA-1: Installed in the base cabinet, including automatic switch-on, filter bag, quick-release clamp and aluminium spiral hose.
• Scotch kit: Customised spark boxes and support tables for use with abrasive fleece belts. Abrasive fleece is particularly suitable for satin finishing and deburring profiles.
• Inverter: For infinitely variable speed control 0 – 3000 rpm.
• Parallel stop – SQT: For guiding workpieces. The angle of inclination and position are infinitely adjustable on the sanding belt.

Scope of delivery Belt sander Aceti ART 16

The machines are delivered ready for use.

• High-quality tool set, cable and plug (CEE plug 16 A 5-pin IP 44 red)
• German-language operating instructions and CE declaration of conformity
• Grinding belt in zirconium corundum quality

Technical data Belt sander Aceti ART 16
