BAMATO sliding table saw BFKS-2000 incl. XXL scope of delivery and standard scoring unit

Product features BAMATO sliding table saw BFKS-2000 incl. XXL scope of delivery and standard scoring unit

• Height-adjustable and tiltable saw blade with Ø 315mm

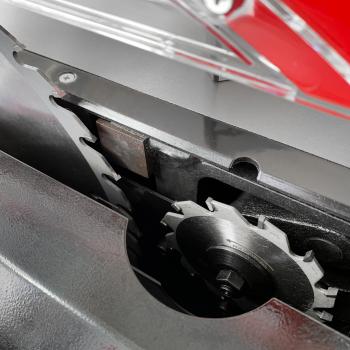

• Incl. standard scoring unit
• Grey cast iron table for low-vibration work
• Table extension for cutting widths up to 1220mm at the rip fence
• Table extension for optimal processing of long workpieces

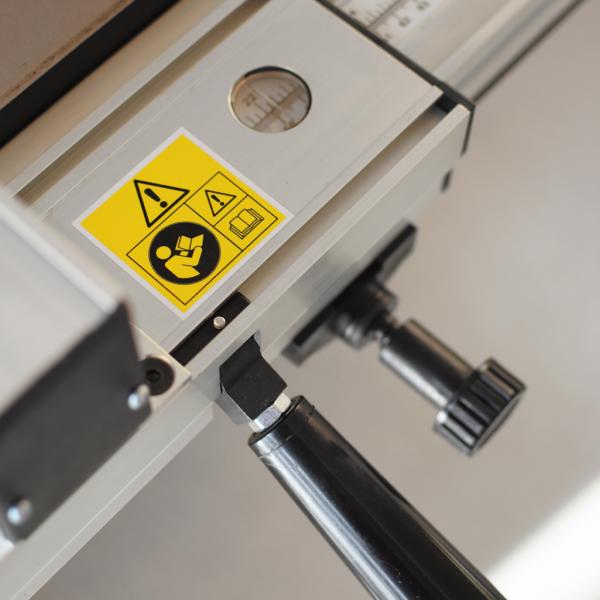

• Stable rip fence with fine adjustment
• 2000 mm long, precision-guided sliding table
• Extension table with support roller

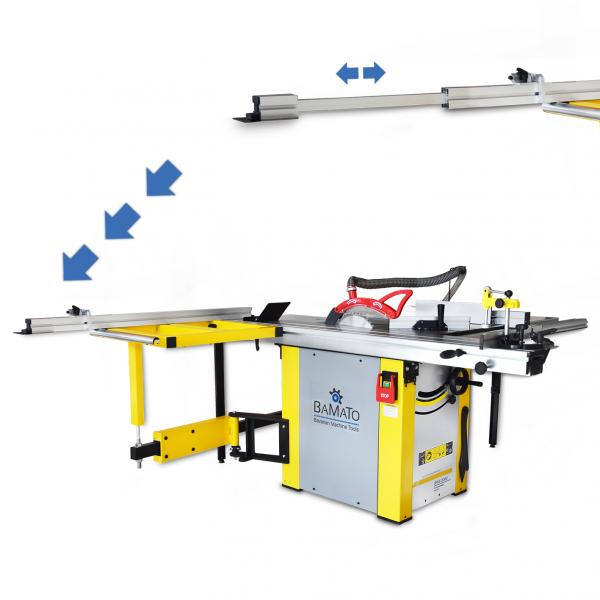

• Extendable telescopic fence, swivelling from -45° to +45° with fine adjustment
• Height-adjustable saw blade via handwheel up to 100mm cutting height
• Saw unit can be tilted from 90° to 45° via hand wheel with scale

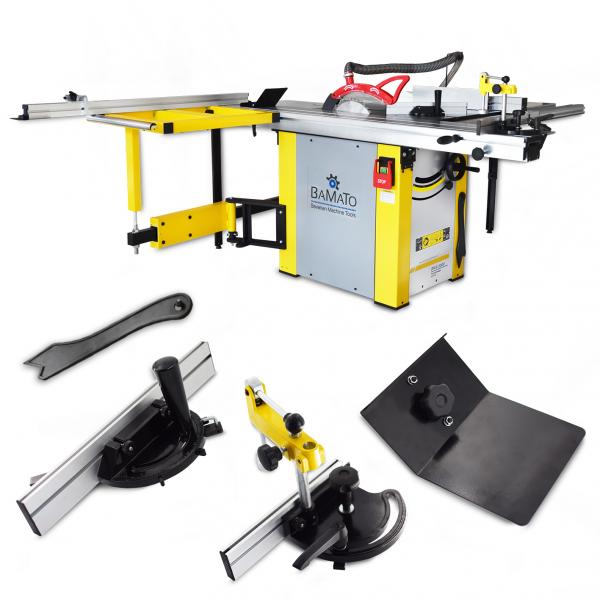

• XXL scope of delivery included:

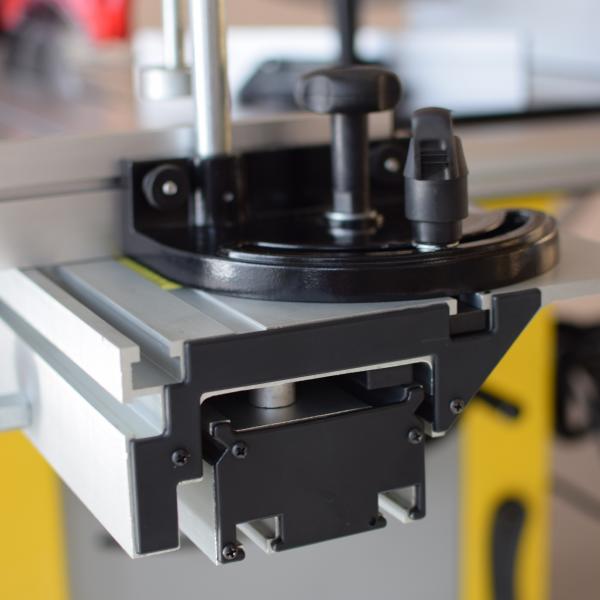

  • Cross and mitre fence with hold-down for sliding format table
  • Short cross and mitre fence
  • Trimming shoe
  • Sliding stock
  • Saw blade protection bonnet with suction hose
  • Scoring device with saw blade 90 x 20 x 3 mm, 12 HM teeth
  • Saw blade 315 x 30 x 3 mm 40 carbide teeth

Technical data BAMATO sliding table saw BFKS-2000 incl. XXL-scope of delivery and standard scoring unit

• Technical data sliding table saw
• Suction connection: 100 mm
• Extension table: 580 x 760 mm
• Sliding table: 2000 x 270 mm
• Max. trimming length: 1900 mm
• Max. Cutting height 45°: 80 mm
• Max. Cutting height 90°: 100 mm
• Motor power S1: 3000 Watt
• Motor power S6: 4000 Watt
• Saw blade / bore: 315 / 30 mm
• Saw blade speed: 4000 min-1
• Saw blade tilting range: 90° - 45°
• Cutting width with rip fence: 1220 mm
• Voltage: 400 V / 50 Hz
• Table size: 800 x 820 mm
• Table height: 870 mm
• Table extension: 800 x 440 mm
• Table extension: 500 x 310 mm
• Travel: 4430 x 4100 x 1170 mm
• Scoring saw blade: 90 mm
• Scoring saw blade speed: 5800 min-1
• Machine dimensions
• width: 2870 mm
• Height: 1170 mm
• Length: 2000 mm
• Weight machine (kg): 263
• Weight with packaging (kg): 284
• Shipping details
• Dimensions package 1 (L/W/H): 2080 x 330 x 250 mm
• Dimensions package 2 (L/W/H): 910 x 741 x 1047 mm
• Number of packages: 2
• Shipping weight: 284 kg
• Shipping method: forwarding agent
