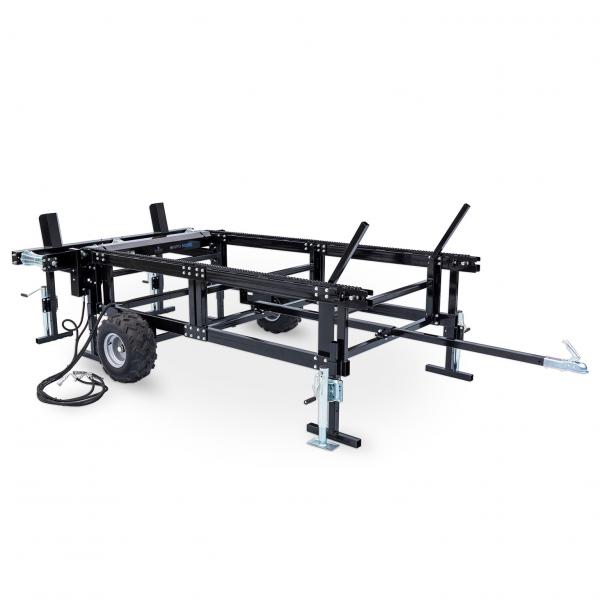

BAMATO log feeder WPO-500SZ with ATV tyres

Product highlights BAMATO log feeder WPO-500SZ with ATV tyres

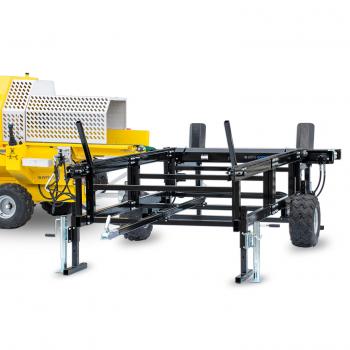

• Hydraulic log feeder suitable for automatic firewood processor WPO-500
• Large ATV tyres with 22x11-10 tyres for perfect handling
• Extendable trailer coupling

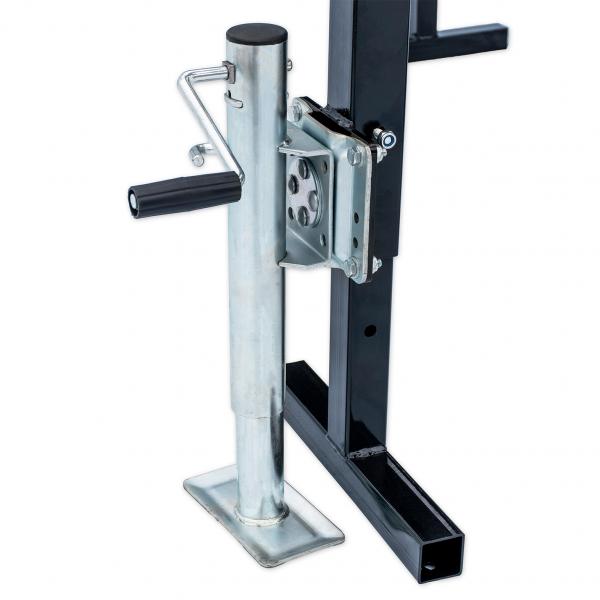

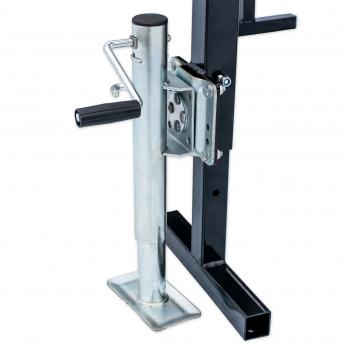

• 6 height-adjustable support legs with hand crank for easy alignment
• 4 solid, height-adjustable positioning legs for final alignment
• Robust and stable frame construction
• Max. payload 3000 kg Hydraulic conveyor chain with central control via automatic firewood processor Max. payload 3000 kg

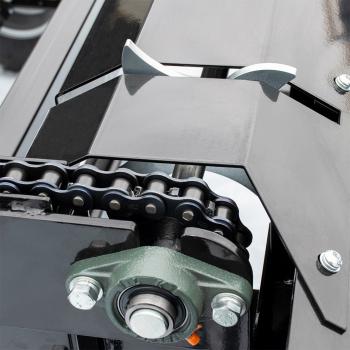

• Hydraulically controlled conveyor chain and feed rollers with centralised control via automatic saw splitter

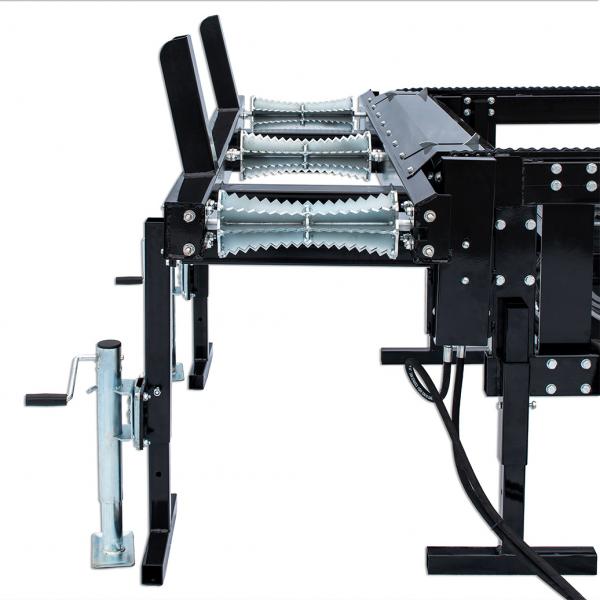

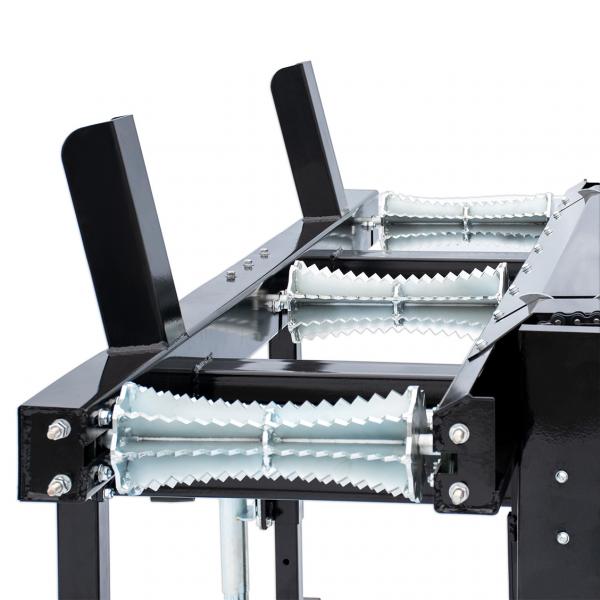

• 580 mm wide feed area with 2200 mm length and 3 feed rollers
• Support area feed table dimensions 1544 x 3000 mm (W x L)
• Overall dimensions 2200 x 4950 x 1600 mm (W x L x H)

Technical data BAMATO log feeder WPO-500SZ with ATV tyres
