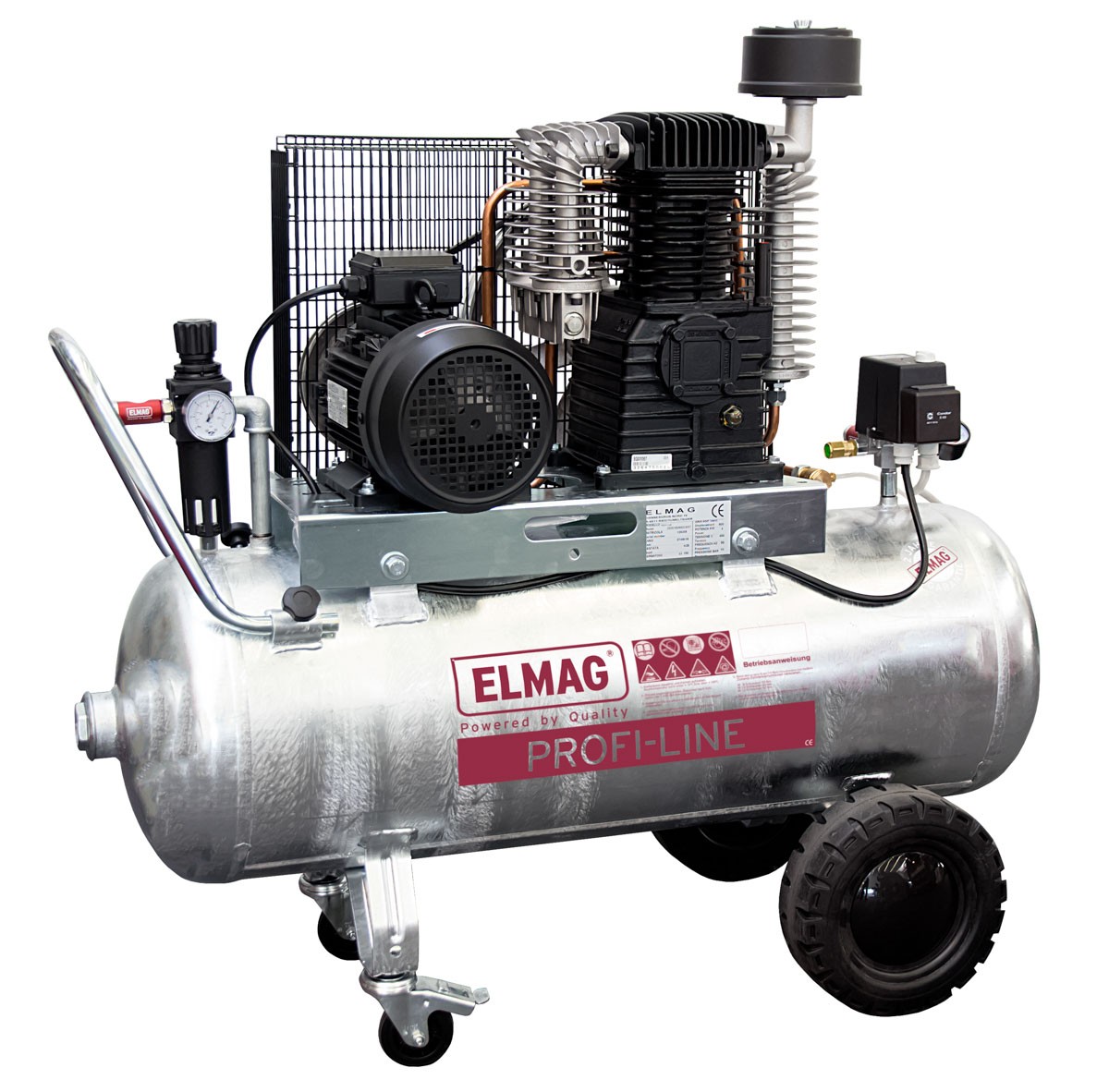

ELMAG PL-Z 840/10/200D Compressor PROFI-LINE 'ZINCED'
Product highlights ELMAG PL-Z 840/10/200D Compressor PROFI-LINE 'ZINCED'
High-performance device
The PL-Z 840/10/200 D air compressor is a high-performance device with a clearly structured technical design for maximum efficiency.
All details meet requirements
Every detail of the PL-Z 840/10/200 D air compressor fulfils the requirements of a reliable compressed air generator for trade and industry.
Impressive wide selection
Offer a wide selection of flexible or stationary devices for different types of organisation.
Unique air cooling system

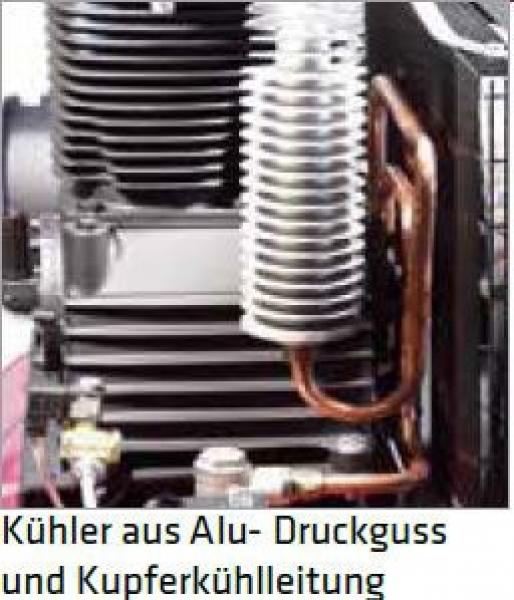

Large intercoolers and aftercoolers made of die-cast aluminium and a long copper cooling line running behind the fan wheel ensure an air inlet temperature in the boiler of an extremely low 50 - 60 °C after one hour of continuous operation.
Advantages:
- Low condensation
- High compressed air quality
- Problem-free compressed air filtration
Tech info: Two-stage piston compressors
A two-stage compressor has two cylinders arranged in series, which compress the air to the final pressure in two stages. In between, the compressed air is cooled with air. This improves efficiency, while at the same time a higher pressure can be achieved than with a single-stage compressor.
All details meet requirements
Every detail of the PL-Z 840/10/200 D air compressor fulfils the requirements of a reliable compressed air generator for trade and industry.
Impressive wide selection
Offer a wide selection of flexible or stationary devices for different types of organisation.
Unique air cooling system
Large intercoolers and aftercoolers made of die-cast aluminium and a long copper cooling line running behind the fan wheel ensure an air inlet temperature in the boiler of an extremely low 50 - 60 °C after one hour of continuous operation.
Advantages:
- Low condensation
- High compressed air quality
- Problem-free compressed air filtration
Tech info: Two-stage piston compressors
A two-stage compressor has two cylinders arranged in series, which compress the air to the final pressure in two stages. In between, the compressed air is cooled with air. This improves efficiency, while at the same time a higher pressure can be achieved than with a single-stage compressor.
Technical facts ELMAG PL-Z 840/10/200D Compressor PROFI-LINE 'ZINCED'
- Three-phase 400 volt drive with motor protection relay
- Indirect drive by means of V-belt
- Compressor cylinder made of grey cast iron
- High-performance precision pistons
- Two-cylinder unit
- Intercooler and aftercooler made of die-cast aluminium with large, deep cooling fins
- Additional cooling copper pipe coil
- Large cast fan wheel
- CONDOR pressure switch for automatic on/off operation
- Non-return valve, safety valve ...

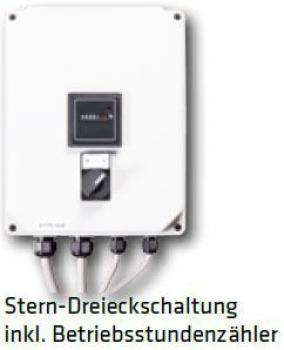

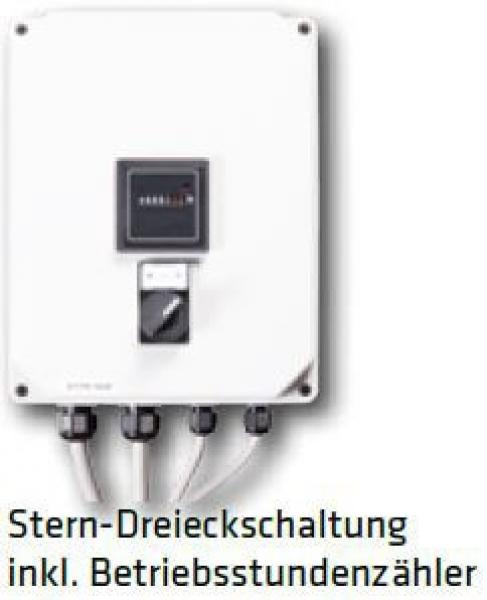

- Operating hours counter
- Safety venting couplings
- Solid rubber wheels with swivel castors & brake
- Filter pressure regulator with coupling
- 15-year boiler guarantee
Technical data ELMAG PL-Z 840/10/200D Compressor PROFI-LINE 'ZINCED'
| Effective delivery quantity | 595 l/min |
| Delivery quantity according to VDMA 4362, measured at 80 % of the maximum pressure | yes |
| Suction capacity | 850 l/min |
| Max. Operating pressure | 10 bar |
| Oil lubricated | yes |
| Container volume | 200 l |
| Execution | mobile |
| Rated motor power | 5,5 / 7,5 kW / hp |
| Electrical connection Voltage / frequency | 400/50 V/Hz |
| Sound pressure level (4 m) | 76 dB(A) |
| Compressor speed | 1150 rpm |
| Air outlet | 1/2 inch |
| Length | 1550 mm |
| Width | 650 mm |
| Height | 1250 mm |
| Weight | 160 kg |
