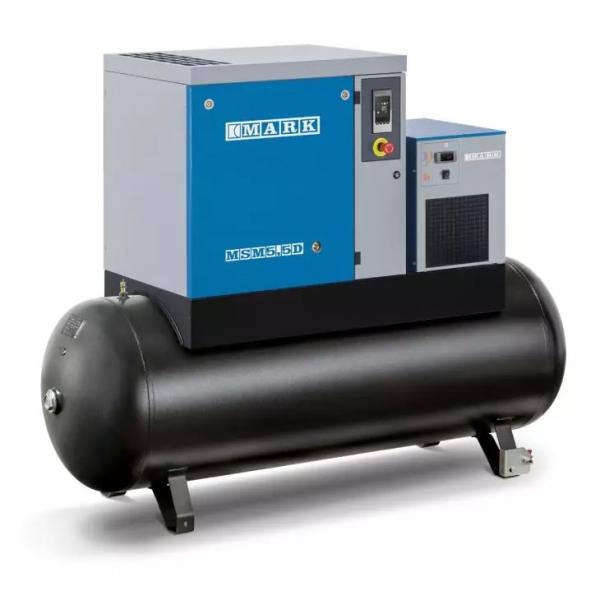

ELMAG MARK screw compressor MSM MAXI 5,5 D - 270/10bar - AD 2000

The MSM MAXI models are fully automatic compressed air control centres for distribution networks in trade and industry. Versions with 10 or 13 bar are available. The standard features of all models include: ES 4000 Basic electronic control unit, star-delta starting circuit, efficient cooling, external oil level control, low noise level, operating hours counter and much more.

MSM MAXI D incl. compressed air tank and refrigerant dryer
The all-in-one compressed air system ‘D’ with refrigeration dryer MDX is for applications that require particularly high compressed air quality with a low and stable pressure dew point.

Intelligent monitoring, control and safety
ES4000 Connect offers advanced monitoring and easy configuration for daily tasks and control of operations.

- Icon-based display with pressure and temperature indicators
- Operating hours, utilisation in hours
- Maintenance messages
- Fault alarms
- Quick pressure adjustment directly on the control unit
- Remote start/stop
- Automatic restart after power failure

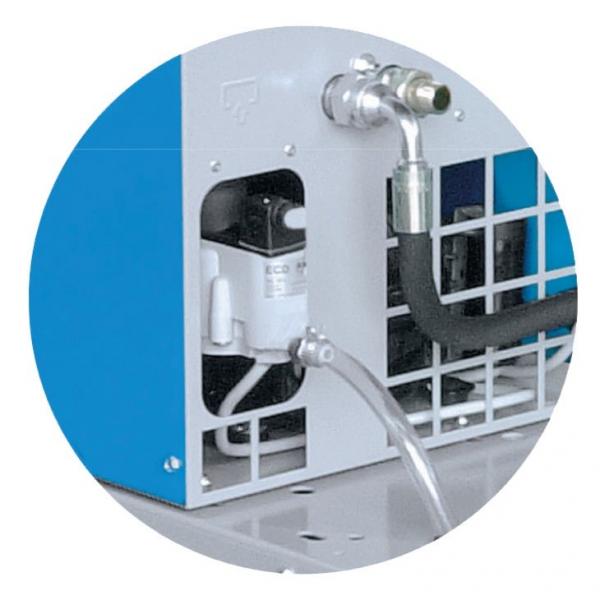

Intelligent condensate drain
Advantages:
- Only condensate, NO compressed air is drained = energy saving
- Low-noise, no noise pollution = protects the environment


Effective delivery rate	697 l/min
Max. Operating pressure	10 bar
Container volume	270 litres
Execution	Free of charge
Nominal motor power	5.5 / 7.5 kW / hp
Elektroanschluss Spannung / Frequenz	400/50 V/Hz
Sound pressure level (4 m)	65 dB(A)
Air outlet	1/2 inch
Length	1540 mm
Width	620 mm
Height	1340 mm
Weight	219 kg
