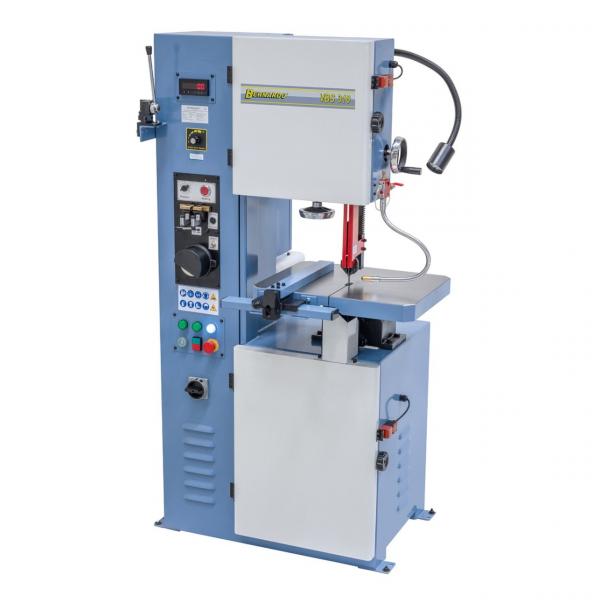

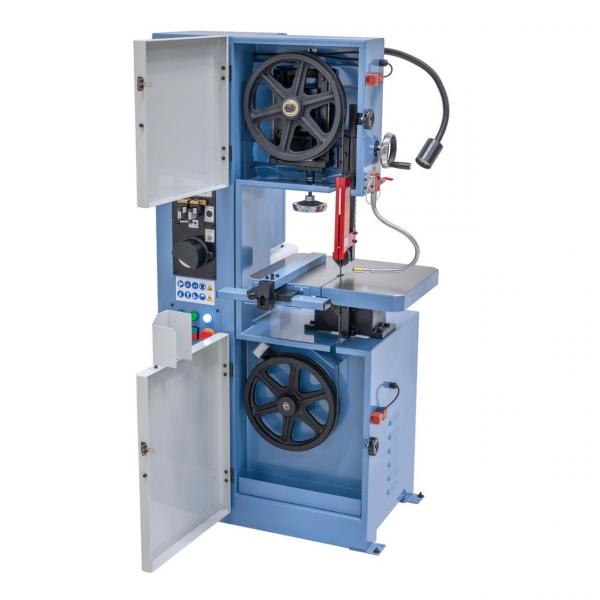

Product features Bernardo vertical band saw VBS 310
The vertical bandsaws in the VBS series are suitable for sawing almost all materials that can be sawn (e.g. steel, plastic, non-ferrous metals, non-ferrous metals, ...). They are mainly used in general production, in tool and fixture construction and in the manufacture of punching and cutting tools.

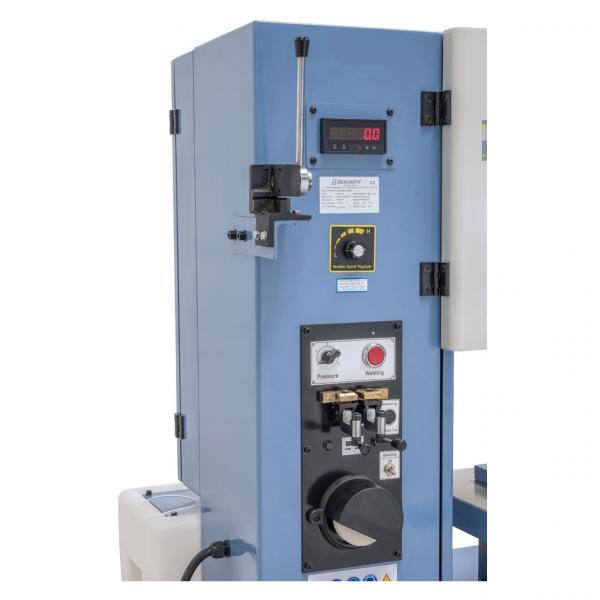

- With LED speed display as standard, for setting the desired cutting speed

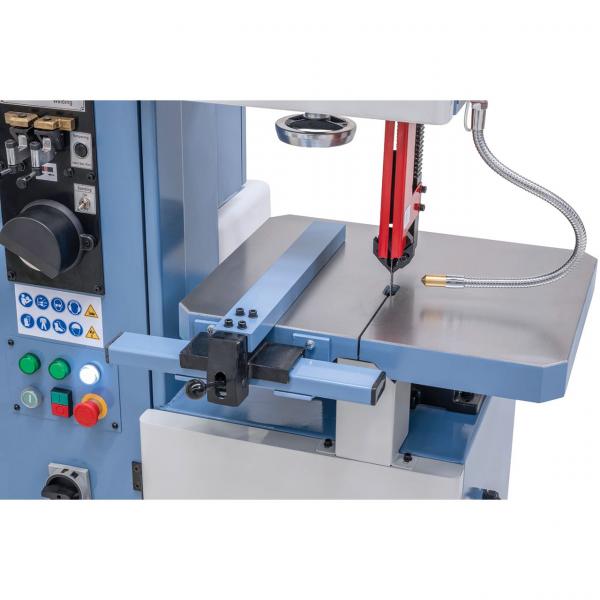

- Solid grey cast iron table, the large support surface ensures safe working
- With strip welding device, annealing device, shears and grindstone as standard
- Infinitely adjustable cutting speed as standard
- Machine body made of robust steel construction for smooth running
- Precision blade guide for optimum cutting results
- Ideal for sawing complicated contours and shapes
- Saw bands from 3 mm width available for radius sawing
Scope of delivery Bernardo vertical band saw VBS 310
- Saw band
- Strip welding device with annealing device
- work light
- Shears
- Grinding stone
- Chip brush
- LED digital display

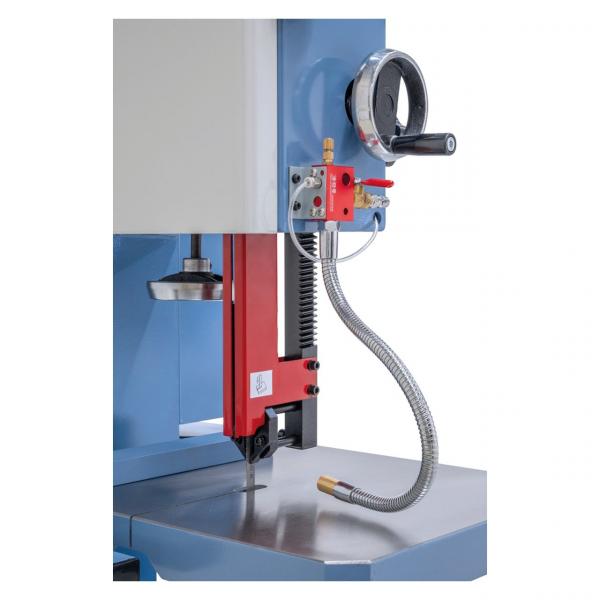

- Micro-spraying system
- Frequency converter
- Longitudinal stop
Technical data Bernardo vertical band saw VBS 310
| Cutting width | 315 mm |
| Cutting height | 185 mm |
| Working height | 890 mm |
| Cutting speed | 10 - 180 m/min |
| Saw blade length | 2885 mm |
| Saw band width | 3 - 16 mm |
| Table size | 500 x 400 mm |
| Table swivelling range | -15° to +45° |
| Engine power | 0,55 kW |
| Sheet welder | 2,4 kVA |
| Machine dimensions (L x D x H) | 960 x 800 x 1600 mm |
| Weight approx. | 265 kg |
